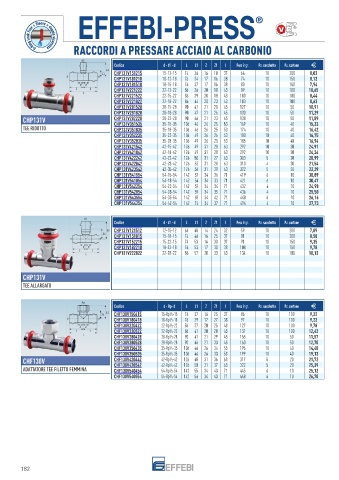

Page 182 - EFFEBI - LISTINO 09
P. 182
EFFEBI-PRESS ®
®
RACCORDI A PRESSARE ACCIAIO AL CARBONIO
O-Ring Leak Free + Sleeve = doppia sicurezza
Codice d - d1 - d L L1 Z Z1 I Peso in gr. Pz. sacchetto Pz. cartone
CHP131V151215 15-12-15 74 36 16 18 37 64 10 200 8,03
CHP131V181218 18-12-18 76 34 17 16 38 74 10 150 8,12
CHP131V181518 18-15-18 76 37 17 16 38 80 10 150 7,94
CHP131V221222 22-12-22 86 36 20 18 43 89 10 100 10,65
CHP131V221522 22-15-22 86 39 20 18 43 100 10 100 8,44
CHP131V221822 22-18-22 86 44 20 23 43 103 10 100 8,63
CHP131V281528 28-15-28 90 41 21 20 45 127 10 50 10,91
CHP131V281828 28-18-28 90 47 21 26 45 130 10 50 11,29
90
CHP131V CHP131V282228 28-22-28 106 46 21 23 45 138 10 50 11,89
35-15-35
CHP131V351535
46
40
15,33
169
10
26
25
53
TEE RIDOTTO CHP131V351835 35-18-35 106 46 26 25 53 174 10 40 16,42
CHP131V352235 35-22-35 106 49 26 26 53 180 10 40 16,75
CHP131V352835 35-28-35 106 49 26 25 53 185 10 40 16,94
CHP131V421542 42-15-42 126 49 31 28 63 292 10 20 24,91
CHP131V421842 42-18-42 126 49 31 28 63 292 10 20 24,34
CHP131V422242 42-22-42 126 50 31 27 63 303 5 20 20,99
CHP131V422842 42-28-42 126 52 31 28 63 310 4 20 21,54
CHP131V423542 42-35-42 126 56 31 29 63 322 5 20 22,39
CHP131V541554 54-15-54 142 57 34 36 71 419 6 10 30,89
CHP131V541854 54-18-54 142 54 34 33 71 421 6 10 30,47
CHP131V542254 54-22-54 142 57 34 34 71 432 4 10 24,98
CHP131V542854 54-28-54 142 59 34 35 71 436 4 10 25,50
CHP131V543554 54-35-54 142 69 34 42 71 448 6 10 26,16
CHP131V544254 54-42-54 142 74 34 37 71 494 4 10 27,73
Codice d - d1 - d L L1 Z Z1 I Peso in gr. Pz. sacchetto Pz. cartone
CHP131V121512 12-15-12 64 45 14 24 32 59 10 200 7,89
CHP131V151815 15-18-15 74 46 16 25 37 81 10 200 8,58
CHP131V152215 15-22-15 74 53 16 30 37 91 10 150 9,35
CHP131V182218 18-22-18 76 53 17 30 38 108 10 150 9,78
CHP131V222822 22-28-22 86 57 20 33 43 134 10 100 10,13
CHP131V
TEE ALLARGATO
Codice d - Rp- d L L1 Z Z1 I Peso in gr. Pz. sacchetto Pz. cartone
CHF130V150415 15-Rp½-15 74 37 16 25 37 86 10 100 9,22
CHF130V180418 18-Rp½-18 76 39 17 27 38 97 10 100 9,22
CHF130V220422 22-Rp½-22 86 37 20 25 43 127 10 100 9,78
CHF130V220522 22-Rp¾-22 86 41 20 28 43 131 10 100 12,42
CHF130V280428 28-Rp½-28 90 41 21 29 45 155 10 50 11,57
CHF130V280528 28-Rp¾-28 90 46 21 33 45 160 10 50 12,70
CHF130V350435 35-Rp½-35 106 46 26 34 53 196 10 40 14,48
CHF130V350535 35-Rp¾-35 106 46 26 33 53 199 10 40 19,13
CHF130V CHF130V420442 42-Rp½-42 126 48 31 36 63 317 5 20 21,72
ADATTATORE TEE FILETTO FEMMINA CHF130V420542 42-Rp¾-42 126 50 31 37 63 322 5 6 20 25,39
445
25,12
10
55
34
54-Rp½-54
142
CHF130V540454
71
43
CHF130V540554 54-Rp¾-54 142 56 34 43 71 448 6 10 26,70
182
