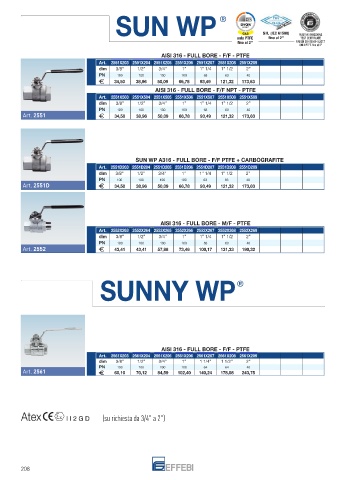

Page 208 - EFFEBI - LISTINO 09

SUN WP ® FUGITIVE EMISSION TEST
ISO 15848-1:2017

only PTFE SIL (IEC 61508) FUGITIVE EMISSIONS
fino al 2"
TEST CERTIFICATE
fino al 2" UNI EN ISO 15848-1:2017
ONLY PTFE fino al 2”
AISI 316 - FULL BORE - F/F - PTFE
Art. 2551X203 2551X204 2551X205 2551X206 2551X207 2551X208 2551X209
dim 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 100 100 100 100 63 63 40
34,50 38,96 50,09 66,78 93,49 121,32 173,63
AISI 316 - FULL BORE - F/F NPT - PTFE
Art. 2551X503 2551X504 2551X505 2551X506 2551X507 2551X508 2551X509
dim 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 100 100 100 100 63 63 40
Art. 2551 34,50 38,96 50,09 66,78 93,49 121,32 173,63

SUN WP A316 - FULL BORE - F/F PTFE + CARBOGRAFITE
Art. 2551D203 2551D204 2551D205 2551D206 2551D207 2551D208 2551D209
dim 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 100 100 100 100 63 63 40
Art. 2551D 34,50 38,96 50,09 66,78 93,49 121,32 173,63

AISI 316 - FULL BORE - M/F - PTFE
Art. 2552X263 2552X264 2552X265 2552X266 2552X267 2552X268 2552X269
dim 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 100 100 100 100 63 63 40
Art. 2552 43,41 43,41 57,88 73,46 100,17 131,33 190,32

SUNNY WP ®

AISI 316 - FULL BORE - F/F - PTFE
Art. 2561X203 2561X204 2561X205 2561X206 2561X207 2561X208 2561X209
dim 3/8” 1/2” 3/4” 1” 1 1/4” 1 1/2” 2”
PN 100 100 100 100 64 64 40
Art. 2561 60,10 70,12 84,59 102,40 140,24 178,08 243,75

(su richiesta da 3/4" a 2")

208
