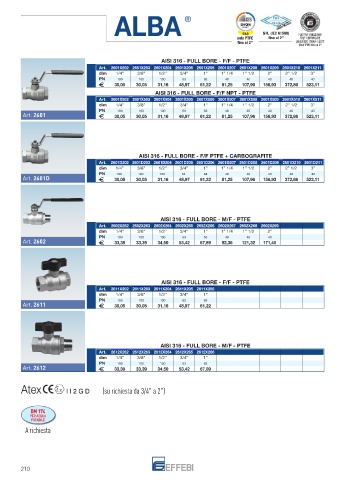

Page 210 - EFFEBI - LISTINO 09

ALBA ® FUGITIVE EMISSION TEST
ISO 15848-1:2017

fino al 2"
only PTFE SIL (IEC 61508) FUGITIVE EMISSIONS
TEST CERTIFICATE
fino al 2" UNI EN ISO 15848-1:2017
ONLY PTFE fino al 2”
AISI 316 - FULL BORE - F/F - PTFE
Art. 2601X202 2601X203 2601X204 2601X205 2601X206 2601X207 2601X208 2601X209 2601X210 2601X211
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2” 2” 1/2 3”
PN 100 100 100 63 63 40 40 40 40 40
30,05 30,05 31,16 48,97 61,22 81,25 107,96 156,93 372,86 523,11
AISI 316 - FULL BORE - F/F NPT - PTFE
Art. 2601X502 2601X503 2601X504 2601X505 2601X506 2601X507 2601X508 2601X509 2601X510 2601X511
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2” 2” 1/2 3”
PN 100 100 100 63 63 40 40 40 40 40
Art. 2601 30,05 30,05 31,16 48,97 61,22 81,25 107,96 156,93 372,86 523,11

AISI 316 - FULL BORE - F/F PTFE + CARBOGRAFITE
Art. 2601D202 2601D203 2601D204 2601D205 2601D206 2601D207 2601D208 2601D209 2601D210 2601D211
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2” 2” 1/2 3”
PN 100 100 100 64 64 40 40 40 40 40
Art. 2601D 30,05 30,05 31,16 48,97 61,22 81,25 107,96 156,93 372,86 523,11

AISI 316 - FULL BORE - M/F - PTFE
Art. 2602X262 2602X263 2602X264 2602X265 2602X266 2602X267 2602X268 2602X269
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 100 100 100 63 63 40 40 40
Art. 2602 33,39 33,39 34,50 53,42 67,89 92,38 121,32 171,40

AISI 316 - FULL BORE - F/F - PTFE
Art. 2611X202 2611X203 2611X204 2611X205 2611X206
dim 1/4” 3/8” 1/2” 3/4” 1”
PN 100 100 100 63 63
Art. 2611 30,05 30,05 31,16 48,97 61,22

AISI 316 - FULL BORE - M/F - PTFE
Art. 2612X262 2612X263 2612X264 2612X265 2612X266
dim 1/4” 3/8” 1/2” 3/4” 1”
PN 100 100 100 63 63
Art. 2612 33,39 33,39 34,50 53,42 67,89

(su richiesta da 3/4" a 2")

DM 174
PER ACQUA
POTABILE
A richiesta

210
