CAPITOLO 10.2 DISPOSITIVI PER GAS

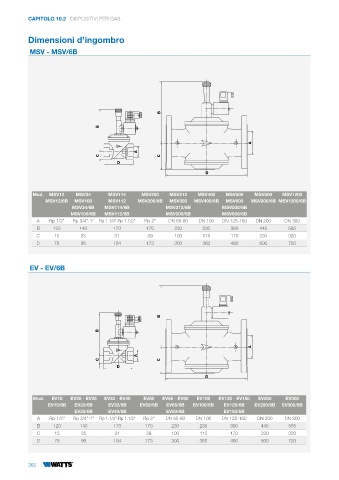

Dimensioni d’ingombro
MSV - MSV/6B
B
B
A
A
C C
D
D
Mod. MSV12 MSV34 MSV114 MSV200 MSV212 MSV400 MSV500 MSV800 MSV1200
MSV12/6B MSV100 MSV112 MSV200/6B MSV300 MSV400/6B MSV600 MSV800/6B MSV1200/6B
MSV34/6B MSV114/6B MSV212/6B MSV500/6B
MSV100/6B MSV112/6B MSV300/6B MSV600/6B
A Rp 1/2” Rp 3/4”-1” Rp 1.1/4”-Rp 1.1/2” Rp 2” DN 65-80 DN 100 DN 125-150 DN 200 DN 300
B 120 140 170 170 230 230 390 445 585
C 15 25 31 39 100 115 170 230 320
D 76 96 154 173 300 360 480 600 720
EV - EV/6B
B
B
A
A
C C
D
D
Mod. EV15 EV20 - EV25 EV32 - EV40 EV50 EV65 - EV80 EV100 EV125 - EV150 EV200 EV300
EV15/6B EV20/6B EV32/6B EV50/6B EV65/6B EV100/6B EV125/6B EV200/6B EV300/6B
EV25/6B EV40/6B EV80/6B EV150/6B
A Rp 1/2” Rp 3/4”-1” Rp 1.1/4”-Rp 1.1/2” Rp 2” DN 65-80 DN 100 DN 125-150 DN 200 DN 300
B 120 140 170 170 230 230 390 445 585
C 15 25 31 39 100 115 170 230 320
D 76 96 154 173 300 360 480 600 720
