DISPOSITIVI PER GAS CAPITOLO 10.2

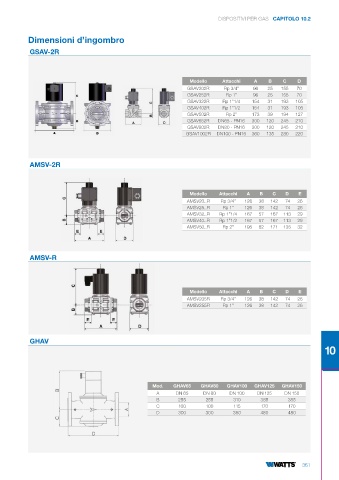

Dimensioni d’ingombro
GSAV-2R

Modello Attacchi A B C D
GSAV202R Rp 3/4” 96 25 155 70
GSAV252R Rp 1” 96 25 155 70
GSAV322R Rp 1”1/4 154 31 193 105
GSAV402R Rp 1”1/2 154 31 193 105
GSAV502R Rp 2” 173 39 194 127
GSAV652R DN65 - PN16 300 120 245 210
GSAV802R DN80 - PN16 300 120 245 210
GSAV1002R DN100 - PN16 360 135 280 220

AMSV-2R

Modello Attacchi A B C D E
AMSV20..R Rp 3/4” 126 38 142 74 26
AMSV25..R Rp 1” 126 38 142 74 26
AMSV32..R Rp 1”1/4 167 57 167 113 29
AMSV40..R Rp 1”1/2 167 57 167 113 29
AMSV50..R Rp 2” 195 62 171 135 32

AMSV-R

Modello Attacchi A B C D E
AMSV205R Rp 3/4” 126 38 142 74 26
AMSV255R Rp 1” 126 38 142 74 26

GHAV
10

Mod. GHAV65 GHAV80 GHAV100 GHAV125 GHAV150
A DN 65 DN 80 DN 100 DN 125 DN 150
B 255 255 310 385 385
C 100 100 115 170 170
D 300 300 360 480 480

361
