RITEGNO / ACCESSORI CAPITOLO 3.7

2

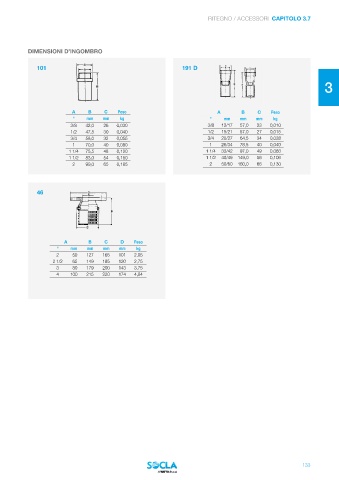

DIMENSIONI D’INGOMBRO

101 191 D

3

A B C Peso A B C Peso
" mm mm kg " mm mm mm kg
3/8 42,0 26 0,030 3/8 12/17 57,0 23 0,010 4
1/2 47,5 30 0,040 1/2 15/21 57,0 27 0,015
3/4 58,0 32 0,055 3/4 20/27 64,5 34 0,028
1 70,0 40 0,080 1 26/34 78,5 40 0,040
1 1/4 75,5 48 0,120 1 1/4 33/42 97,0 49 0,063
1 1/2 83,0 54 0,180 1 1/2 40/49 149,0 56 0,108 5
2 99,0 65 0,185 2 50/60 180,0 66 0,130

46
6

7
A B C D Peso
" mm mm mm mm kg
2 50 127 165 101 2,05
2 1/2 65 149 185 120 2,75
3 80 179 200 143 3,75 8
4 100 215 220 174 4,84
