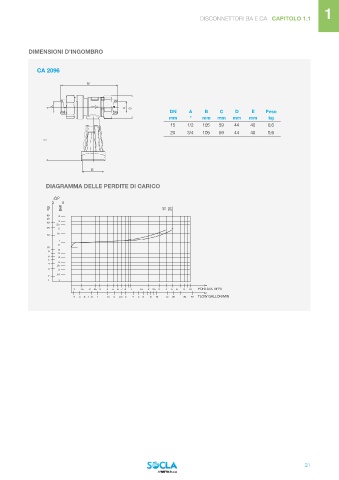

DISCONNETTORI BA E CA CAPITOLO 1.1
2
DIMENSIONI D’INGOMBRO
CA 2096
3
B
A
A D
DN A B C D E Peso
mm " mm mm mm mm kg
15 1/2 105 59 44 40 0,6 4
20 3/4 105 59 44 40 0,6
C
5
E
DIAGRAMMA DELLE PERDITE DI CARICO
6
P
PSI BAR 15 20
60 4
50
40 3
2.5
30 2
1.5 7
20
1
.8
10
.6
8
.5
6 .4
5
4 .3
.25
3 .2 8
.15
2
1 .1
.1 .15 .2 .25 .3 .4 .5 .6 .7 .8 1 1.5 2 2.5 3 4 5 6 8 10 PORTATA M 3 /H
.4 .5 .6 .7 .8 1 1.5 2 2.5 3 4 5 6 8 10 15 20 30 40 FLOW GALLON/MIN
