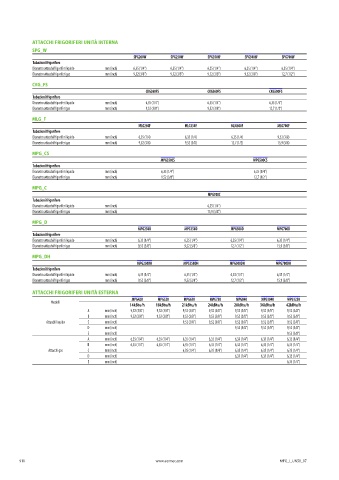

ATTACCHI FRIGORIFERI UNITÀ INTERNA
SPG_W
SPG200W SPG250W SPG350W SPG500W SPG700W
Tubazioni frigorifere
Diametro attacchi frigoriferi liquido mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
Diametro attacchi frigoriferi gas mm (inch) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 12,7 (1/2”)

CKG_FS
CKG260FS CKG360FS CKG500FS
Tubazioni frigorifere
Diametro attacchi frigoriferi liquido mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
Diametro attacchi frigoriferi gas mm (inch) 9,52 (3/8”) 9,52 (3/8”) 12,7 (1/2”)
MLG_F
MLG250F MLG350F MLG500F MLG700F
Tubazioni frigorifere
Diametro attacchi frigoriferi liquido mm (inch) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 9,52 (3/8)
Diametro attacchi frigoriferi gas mm (inch) 9,52 (3/8) 9,52 (3/8) 12,7 (1/2) 15,9 (5/8)
MPG_CS
MPG350CS MPG500CS
Tubazioni frigorifere
Diametro attacchi frigoriferi liquido mm (inch) 6,35 (1/4”) 6,35 (1/4”)
Diametro attacchi frigoriferi gas mm (inch) 9,52 (3/8”) 12,7 (1/2”)
MPG_C
MPG700C

Tubazioni frigorifere
Diametro attacchi frigoriferi liquido mm (inch) 6,35 (1/4”)
Diametro attacchi frigoriferi gas mm (inch) 15,9 (5/8”)
MPG_D
MPG250D MPG350D MPG500D MPG700D
Tubazioni frigorifere
Diametro attacchi frigoriferi liquido mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
Diametro attacchi frigoriferi gas mm (inch) 9,52 (3/8”) 9,52 (3/8”) 12,7 (1/2”) 15,9 (5/8”)
MPG_DH
MPG250DH MPG350DH MPG500DH MPG700DH
Tubazioni frigorifere
Diametro attacchi frigoriferi liquido mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
Diametro attacchi frigoriferi gas mm (inch) 9,52 (3/8”) 9,52 (3/8”) 12,7 (1/2”) 15,9 (5/8”)

ATTACCHI FRIGORIFERI UNITÀ ESTERNA
MPG420 MPG520 MPG630 MPG730 MPG840 MPG1040 MPG1250
Modelli
14kBtu/h 18kBtu/h 21kBtu/h 24kBtu/h 28kBtu/h 36kBtu/h 42kBtu/h
A mm (inch) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”)
B mm (inch) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”)
Attacchi liquido C mm (inch) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”)
D mm (inch) 9,52 (3/8”) 9,52 (3/8”) 9,52 (3/8”)
E mm (inch) 9,52 (3/8”)
A mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
B mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
Attacchi gas C mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
D mm (inch) 6,35 (1/4”) 6,35 (1/4”) 6,35 (1/4”)
E mm (inch) 6,35 (1/4”)
SPLIT
