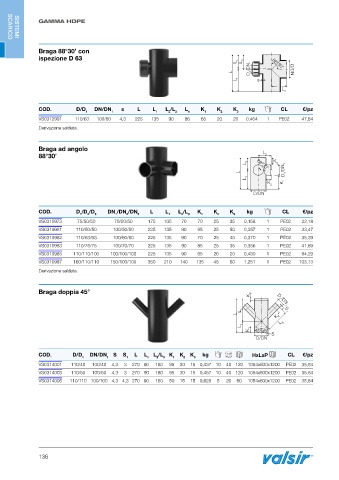

Page 138 - VALSIR - LISTINO ITS 2024 - FIDRA

GAMMA HDPE

SISTEMI
SISTEMI
SCARICO
SCARICO
Braga 88°30’ con
ispezione D 63
L 4 L 3 88°30’
D 1 /DN 1 D/DN
L
L 1 s
L 2

COD. D/D DN/DN s L L L /L L K K K kg CL €/pz
1 1 1 2 3 4 1 2 3
VS0312991 110/63 100/60 4,3 225 135 90 86 65 20 20 0,464 1 PE02 47,84
Derivazione saldata.

Braga ad angolo L
88°30’ 2
K
L 3 88°30’ 3
D 1 /DN 1
L
L 1
K 2 K 1
D/DN

COD. D /D /D DN /DN /DN L L L /L K K K kg CL €/pz
1 2 3 1 2 3 1 2 3 1 2 3
VS0310973 75/50/50 70/50/50 175 105 70 70 25 35 0,158 1 PE02 32,18
VS0310981 110/50/50 100/50/50 225 135 90 95 25 50 0,357 1 PE02 33,47
VS0310982 110/63/63 100/60/60 225 135 90 70 25 45 0,370 1 PE02 35,39
VS0310983 110/75/75 100/70/70 225 135 90 85 25 35 0,356 1 PE02 41,89
VS0310985 110/110/100 100/100/100 225 135 90 65 20 20 0,430 1 PE02 94,29
VS0310987 160/110/110 150/100/100 350 210 140 135 45 60 1,251 1 PE02 103,13
Derivazione saldata.

Braga doppia 45°
K 3 D 1 /DN 1

L 3 S 1
L
K 2
L 2
L 1
K 1 45° 45°
S
D/DN
COD. D/D DN/DN S S L L L /L K K K kg HxLxP CL €/pz
1 1 1 1 2 3 1 2 3
VS0314001 110/40 100/40 4,3 3 270 90 180 95 30 15 0,437 10 40 120 1054x800x1200 PE02 35,84
VS0314003 110/50 100/50 4,3 3 270 90 180 95 30 15 0,457 10 40 120 1054x800x1200 PE02 35,84
VS0314005 110/110 100/100 4,3 4,3 270 90 180 50 15 15 0,628 5 20 60 1054x800x1200 PE02 35,84
