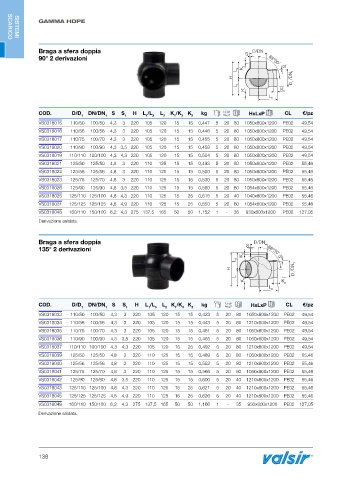

Page 140 - VALSIR - LISTINO ITS 2024 - FIDRA

GAMMA HDPE

SISTEMI
SISTEMI
SCARICO
SCARICO
Braga a sfera doppia S D/DN
90° 2 derivazioni 88°30’
S 1
L 3 K 3
H D 1 /DN 1
L 1
K 1 K 2
L 2

COD. D/D 1 DN/DN 1 S S 1 H L /L 3 L 2 K /K 3 K 2 kg HxLxP CL €/pz
1
1
VS0318015 110/50 100/50 4,3 3 220 105 120 15 15 0,447 5 20 80 1050x800x1200 PE02 49,54
VS0318016 110/56 100/56 4,3 3 220 105 120 15 15 0,446 5 20 80 1050x800x1200 PE02 49,54
VS0318017 110/75 100/70 4,3 3 220 105 120 15 15 0,455 5 20 80 1050x800x1200 PE02 49,54
VS0318020 110/90 100/90 4,3 3,5 220 105 120 15 15 0,458 5 20 80 1050x800x1200 PE02 49,54
VS0318019 110/110 100/100 4,3 4,3 220 105 120 15 15 0,504 5 20 80 1050x800x1200 PE02 49,54
VS0318021 125/50 125/50 4,8 3 220 110 125 15 15 0,493 5 20 80 1050x800x1200 PE02 55,46
VS0318022 125/56 125/56 4,8 3 220 110 125 15 15 0,500 5 20 80 1050x800x1200 PE02 55,46
VS0318023 125/75 125/70 4,8 3 220 110 125 15 15 0,530 5 20 80 1050x800x1200 PE02 55,46
VS0318026 125/90 125/90 4,8 3,5 220 110 125 15 15 0,580 5 20 60 1054x800x1200 PE02 55,46
VS0318025 125/110 125/100 4,8 4,3 220 110 125 15 25 0,615 5 20 40 1040x800x1200 PE02 55,46
VS0318031 125/125 125/125 4,8 4,9 220 110 125 15 25 0,650 5 20 60 1054x800x1200 PE02 55,46
VS0318048 160/110 150/100 6,2 4,3 275 137,5 165 50 50 1,152 1 - 35 930x800x1200 PE02 127,05
Derivazione saldata.

Braga a sfera doppia D/DN
135° 2 derivazioni S 88°30’
K 3 S 1
L 3
D 1 /DN 1
H
L 1
K 1 K 2
L
2

COD. D/D DN/DN S S H L /L L K /K K kg HxLxP CL €/pz
1 1 1 1 3 2 1 3 2
VS0318033 110/50 100/50 4,3 3 220 105 120 15 15 0,423 5 20 80 1050x800x1200 PE02 49,54
VS0318034 110/56 100/56 4,3 3 220 105 120 15 15 0,443 5 20 80 1210x800x1200 PE02 49,54
VS0318035 110/75 100/70 4,3 3 220 105 120 15 15 0,461 5 20 80 1050x800x1200 PE02 49,54
VS0318036 110/90 100/90 4,3 3,5 220 105 120 15 15 0,465 5 20 80 1050x800x1200 PE02 49,54
VS0318037 110/110 100/100 4,3 4,3 220 105 120 15 25 0,492 5 20 80 1210x800x1200 PE02 49,54
VS0318039 125/50 125/50 4,8 3 220 110 125 15 15 0,489 5 20 80 1050x800x1200 PE02 55,46
VS0318040 125/56 125/56 4,8 3 220 110 125 15 15 0,552 5 20 80 1210x800x1200 PE02 55,46
VS0318041 125/75 125/70 4,8 3 220 110 125 15 15 0,566 5 20 80 1050x800x1200 PE02 55,46
VS0318042 125/90 125/90 4,8 3,5 220 110 125 15 15 0,600 5 20 40 1210x800x1200 PE02 55,46
VS0318043 125/110 125/100 4,8 4,3 220 110 125 15 25 0,621 5 20 40 1210x800x1200 PE02 55,46
VS0318045 125/125 125/125 4,8 4,9 220 110 125 15 25 0,626 5 20 40 1210x800x1200 PE02 55,46
VS0318049 160/110 150/100 6,2 4,3 275 137,5 165 50 50 1,166 1 - 35 930x800x1200 PE02 127,05
Derivazione saldata.
