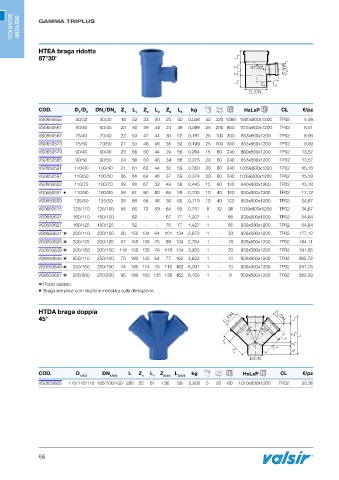

GAMMA TRIPLUS

SISTEMI
SISTEMI
SCARICO
SCARICO
HTEA braga ridotta
87°30’ L 3
Z 3 87˚30' D 2 /DN 2
Z 1
L 1 Z 2 L 2
D /DN
1 1
COD. D /D DN /DN Z L Z L Z L kg HxLxP CL €/pz
1 2 1 2 1 1 2 2 3 3
VS0650555 40/32 40/30 18 52 23 50 20 50 0,048 40 320 1280 1000x800x1200 TP02 5,46
VS0650561 50/40 50/40 23 50 29 44 24 46 0,099 25 200 800 1010x800x1200 TP02 6,51
VS0650567 75/40 70/40 22 53 47 44 30 52 0,191 25 100 300 853x800x1200 TP02 8,99
VS0650573 75/50 70/50 27 53 46 46 35 52 0,199 25 100 300 853x800x1200 TP02 8,99
VS0650579 90/40 90/40 23 56 50 44 29 56 0,264 15 60 240 860x800x1200 TP02 13,57
VS0650585 90/50 90/50 24 56 50 46 34 56 0,275 20 80 240 853x800x1200 TP02 13,57
VS0650591 110/40 100/40 21 61 62 44 32 59 0,350 20 80 240 1039x800x1200 TP02 15,18
VS0650597 110/50 100/50 26 61 64 46 37 59 0,374 20 80 240 1039x800x1200 TP02 15,18
VS0650603 110/75 100/70 38 61 67 52 49 59 0,445 15 60 120 940x800x1200 TP02 15,18
VS0650691 ® 110/90 100/90 56 61 90 60 65 59 0,705 10 40 120 930x800x1200 TP02 17,12
VS0650609 125/50 125/50 28 66 68 46 36 65 0,719 10 40 120 853x800x1200 TP02 34,67
VS0650615 125/110 125/100 58 66 72 59 64 65 0,751 8 32 96 1039x800x1200 TP02 34,67
VS0650621 160/110 150/100 - 82 - - 67 77 1,207 1 - 65 930x800x1200 TP02 54,64
VS0650627 160/125 150/125 - 82 - - 75 77 1,427 1 - 65 930x800x1200 TP02 54,64
VS0650631 Ü 200/110 200/100 50 150 134 64 101 134 2,873 1 - 20 930x800x1200 TP02 177,12
VS0650635 Ü 200/125 200/125 57 150 135 75 99 134 2,764 1 - 18 930x800x1200 TP02 184,11
VS0650639 Ü 200/160 200/150 118 150 138 76 116 134 3,205 1 - 20 930x800x1200 TP02 191,05
VS0650645 Ü 250/110 250/100 70 180 145 64 77 162 4,632 1 - 10 930x800x1200 TP02 265,72
VS0650649 Ü 250/160 250/150 74 180 174 78 118 162 6,091 1 - 10 930x800x1200 TP02 291,78
VS0650651 Ü 250/200 250/200 95 180 160 135 138 162 6,150 1 - 8 930x800x1200 TP02 382,09
Ü Pezzo saldato.
® Braga semplice con riduzione innestata sulla derivazione.

HTDA braga doppia
45° D 2 /DN 2 D 3 /DN 3 L 3
45° 45°
Z 3 L
L 4
Z 1
L 2
Z 4 L 1
Z 2
D/DN
COD. D DN L Z L Z L kg HxLxP CL €/pz
1/2/3 1/2/3 1 1 2/3/4 2/3/4
VS0650655 110/110/110 100/100/100 280 25 61 136 59 0,902 5 20 60 1010x800x1200 TP02 30,36
