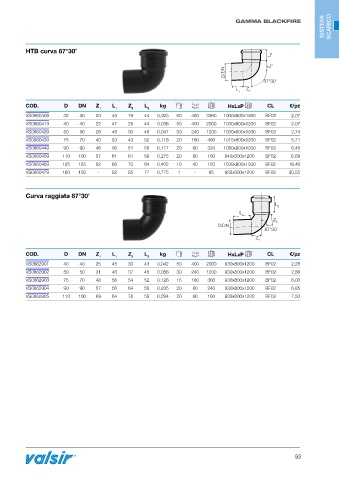

Page 95 - VALSIR - LISTINO ITS 2024 - FIDRA

SISTEMI SISTEMI SCARICO SCARICO
GAMMA BLACKFIRE

HTB curva 87°30’
L 2
Z 2
D/DN
87°30'
L 1 Z 1

COD. D DN Z 1 L 1 Z 2 L 2 kg HxLxP CL €/pz

VS0660409 32 30 20 45 19 44 0,025 60 480 3360 1000x800x1200 BF02 2,07
VS0660419 40 40 22 47 25 44 0,036 50 400 2000 1030x800x1200 BF02 2,07
VS0660429 50 50 26 48 30 46 0,047 30 240 1200 1030x800x1200 BF02 2,74
VS0660439 75 70 40 53 43 52 0,116 20 160 480 1015x800x1200 BF02 5,71
VS0660449 90 90 46 56 51 56 0,177 20 80 320 1080x800x1200 BF02 6,45
VS0660459 110 100 57 61 61 59 0,275 20 80 160 940x800x1200 BF02 6,68
VS0660469 125 125 62 66 70 64 0,402 10 40 120 1039x800x1200 BF02 18,46
VS0660479 160 150 - 82 85 77 0,775 1 - 65 930x800x1200 BF02 30,55

Curva raggiata 87°30’
L 2
L 1
Z 2
D/DN
87°30’
Z 1

COD. D DN Z L Z L kg HxLxP CL €/pz
1 1 2 2
VS0662901 40 40 25 45 30 43 0,042 50 400 2000 930x800x1200 BF02 2,28
VS0662902 50 50 31 46 37 45 0,056 30 240 1200 930x800x1200 BF02 2,86
VS0662903 75 70 48 56 54 52 0,126 15 180 360 930x800x1200 BF02 6,00
VS0662904 90 90 57 56 64 56 0,205 20 80 240 930x800x1200 BF02 6,85
VS0662905 110 100 69 64 78 59 0,294 20 80 160 930x800x1200 BF02 7,50

93
