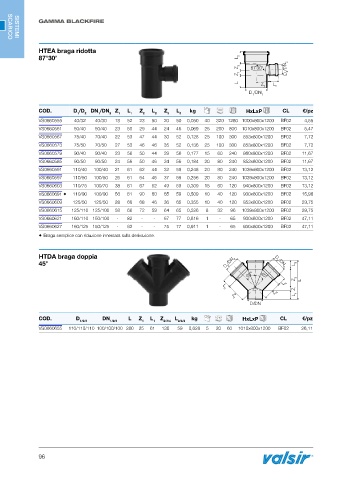

GAMMA BLACKFIRE

SISTEMI
SISTEMI
SCARICO
SCARICO
HTEA braga ridotta
87°30’ L 3
Z 3 87˚30' D 2 /DN 2
Z 1
L 1 Z L
2 2
D /DN 1
1

COD. D /D DN /DN Z L Z L Z L kg HxLxP CL €/pz
1 2 1 2 1 1 2 2 3 3
VS0660555 40/32 40/30 18 52 23 50 20 50 0,050 40 320 1280 1000x800x1200 BF02 4,55
VS0660561 50/40 50/40 23 50 29 44 24 46 0,069 25 200 800 1010x800x1200 BF02 5,47
VS0660567 75/40 70/40 22 53 47 44 30 52 0,128 25 100 300 853x800x1200 BF02 7,72
VS0660573 75/50 70/50 27 53 46 46 35 52 0,136 25 100 300 853x800x1200 BF02 7,72
VS0660579 90/40 90/40 23 56 50 44 29 56 0,177 15 60 240 860x800x1200 BF02 11,67
VS0660585 90/50 90/50 24 56 50 46 34 56 0,184 20 80 240 853x800x1200 BF02 11,67
VS0660591 110/40 100/40 21 61 62 44 32 59 0,248 20 80 240 1039x800x1200 BF02 13,12
VS0660597 110/50 100/50 26 61 64 46 37 59 0,256 20 80 240 1039x800x1200 BF02 13,12
VS0660603 110/75 100/70 38 61 67 52 49 59 0,309 15 60 120 940x800x1200 BF02 13,12
VS0660691 ® 110/90 100/90 56 61 90 60 65 59 0,509 10 40 120 930x800x1200 BF02 15,98
VS0660609 125/50 125/50 28 66 68 46 36 65 0,355 10 40 120 853x800x1200 BF02 29,75
VS0660615 125/110 125/100 58 66 72 59 64 65 0,526 8 32 96 1039x800x1200 BF02 29,75
VS0660621 160/110 150/100 - 82 - - 67 77 0,816 1 - 65 930x800x1200 BF02 47,11
VS0660627 160/125 150/125 - 82 - - 75 77 0,911 1 - 65 930x800x1200 BF02 47,11
® Braga semplice con riduzione innestata sulla derivazione.

HTDA braga doppia
45° D 2 /DN 2 D 3 /DN 3 L 3
45° 45°
Z 3 L
L 4
Z 1
L 2
Z 4
L 1
Z 2
D/DN
COD. D DN L Z L Z L kg HxLxP CL €/pz
1/2/3 1/2/3 1 1 2/3/4 2/3/4
VS0660655 110/110/110 100/100/100 280 25 61 136 59 0,628 5 20 60 1010x800x1200 BF02 26,11

96
