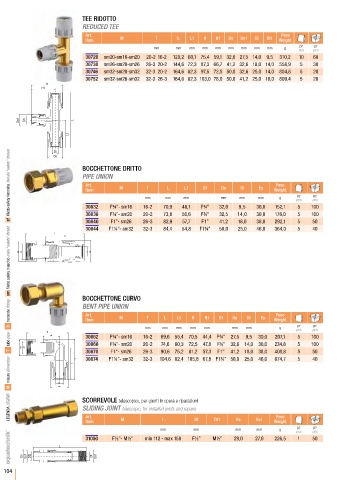

Page 106 - AQUATECHNIK - SAFETY

TEE RIDOTTO
REDUCED TEE
Art. Peso

Item M T L L1 H H1 De De1 Di Di1 Weight
mm mm mm mm mm mm mm mm mm g pcs pcs
pz
pz
30720 sm20-sm16-sm20 20-2 16-2 120,2 60,1 75,4 59,1 32,6 27,5 14,0 9,5 310,2 10 60
30730 sm26-sm20-sm26 26-3 20-2 144,6 72,3 87,3 66,7 41,2 32,6 18,0 14,0 558,9 5 30
30746 sm32-sm20-sm32 32-3 20-2 164,6 82,3 97,5 72,5 50,0 32,6 25,0 14,0 804,8 5 20
30752 sm32-sm26-sm32 32-3 26-3 164,6 82,3 103,0 78,0 50,0 41,2 25,0 18,0 809,4 5 20
H
H1

De1 Di1 L

L1

Di
De
BOCCHETTONE DRITTO
PIPE UNION
Art. Peso
Item M T L L1 Df De Di Es Weight
mm mm mm mm mm mm g pz pz
pcs pcs
30832 F¾”- sm16 16-2 70,9 48,1 F¾” 32,0 9,5 30,0 152,1 5 100
30836 F¾”- sm20 20-2 73,8 50,6 F¾” 32,5 14,0 30,0 176,0 5 100
sf 30840 F1”- sm26 26-3 82,9 57,7 F1” 41,2 18,0 38,0 292,1 5 50
30844 F1¼”- sm32 32-3 84,4 54,8 F1¼” 50,0 25,0 46,0 364,0 5 40
L
L1

Es Df Di De

sm LEGENDA LEGEND misure dimension tubo pipe raccordo fitting filetto safety maschio male “safety” thread filetto safety femmina female “safety” thread
BOCCHETTONE CURVO
BENT PIPE UNION
Art. Peso
Item M T L L1 H H1 Df De Di Es Weight
pz pz
R mm mm mm mm mm mm mm g pcs pcs
H
30862 F¾”- sm16 16-2 69,6 55,4 70,5 44,4 F¾” 27,5 9,5 30,0 207,1 5 100
H1
30866 F¾”- sm20 20-2 74,6 60,3 72,5 47,8 F¾” 32,6 14,0 30,0 234,8 5 100
T Es Df 30870 F1”- sm26 26-3 90,6 75,2 81,2 57,3 F1” 41,2 18,0 38,0 408,8 5 50
30874 F1¼”- sm32 32-3 104,6 82,4 105,8 67,8 F1¼” 50,0 25,0 46,0 674,7 5 40
L
L1

Di
M De
SCORREVOLE telescopico, per giunti in opera e riparazioni
SLIDING JOINT telescopic, for installed joints and repairs
Art. Peso
Item M L Df Df1 Es Es1 Weight
mm mm mm mm g pz pz
pcs pcs
31050 F½”- M½” min 112 - max 158 F½” M½” 29,0 27,0 226,5 1 50
L

Es Es1 Df2 Df Es1
104 105
