P. 155

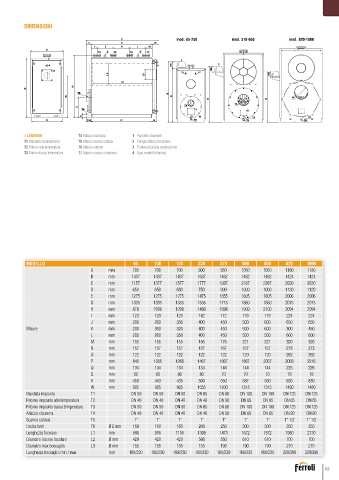

DIMENSIONI
mod. 65-230 mod. 370-650 mod. 820-1000
> LEGENDA T4 Attacco sicurezza 1 Pannello strumenti
T1 Mandata riscaldamento T5 Attacco scarico caldaia 2 Flangia attacco bruciatore
T2 Ritorno alta temperatura T6 Attacco camino 3 Portina di pulizia camera fumo
T3 Ritorno bassa temperatura T7 Attacco scarico condensa 4 Spia controllo fiamma
MODELLO 65 100 150 230 370 500 650 820 1000
A mm 700 700 700 800 950 1050 1050 1180 1180
B mm 1437 1437 1437 1637 1462 1462 1462 1424 1424
C mm 1157 1377 1577 1777 1987 2187 2387 2620 2620
D mm 650 650 650 750 900 1000 1000 1120 1120
E mm 1275 1275 1275 1475 1655 1805 1805 2006 2006
G mm 1335 1335 1335 1535 1715 1860 1860 2075 2075
H mm 878 1098 1298 1498 1698 1900 2100 2094 2094
I mm 123 123 123 142 172 179 179 224 224
J mm 200 260 350 400 450 500 600 650 650
Misure K mm 200 300 320 400 450 500 600 300 450
L mm 200 260 350 400 450 500 500 600 600
M mm 155 155 155 156 176 221 221 320 320
N mm 157 157 157 157 167 167 167 278 273
O mm 122 122 122 122 122 120 120 262 262
P mm 846 1066 1266 1467 1667 1867 2067 2068 2216
Q mm 134 134 134 134 144 144 144 226 226
S mm 80 80 80 80 70 70 70 78 78
V mm 450 443 435 500 550 587 580 830 830
W mm 905 905 905 1055 1200 1315 1315 1480 1480
Mandata impianto T1 DN 50 DN 50 DN 50 DN 65 DN 80 DN 100 DN 100 DN 125 DN 125
Ritorno impianto alta temperatura T2 DN 40 DN 40 DN 40 DN 40 DN 50 DN 65 DN 65 DN 65 DN 65
Ritorno impianto bassa temperatura T3 DN 50 DN 50 DN 50 DN 65 DN 80 DN 100 DN 100 DN 125 DN 125
Attacco sicurezza T4 DN 40 DN 40 DN 40 DN 40 DN 50 DN 65 DN 65 DN 80 DN 80
Scarico caldaia T5 1” 1” 1” 1” 1” 1” 1” 1" 1/2 1" 1/2
Uscita fumi T6 Ø E mm 160 160 160 200 250 300 300 350 350
Lunghezza focolare L1 mm 686 906 1106 1308 1473 1672 1872 1980 2130
Diametro interno focolare L2 Ø mm 420 420 420 500 550 610 610 700 700
Diametro max boccaglio L3 Ø mm 155 155 155 155 190 190 190 270 270
Lunghezza boccaglio min / max mm 160/230 160/230 160/230 160/230 160/230 160/230 160/230 320/390 320/390
