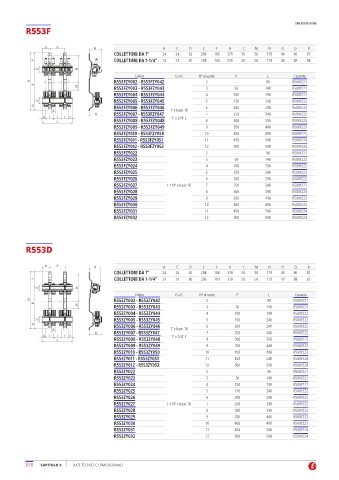

Page 312 - GIACOMINI - LISTINO 2024
P. 312
DIMENSIONI IN MM
R553F
O O P P R R A C D E F H I M N O Q R
COLLETTORI DA 1” 24 24 62 208 108 378 50 50 179 49 86 83
COLLETTORI DA 1-1/4” 24 24 62 208 104 378 50 50 179 49 88 88
F F
G G N N
Codice G x B N° di uscite P L Cassetta
H H R553FZY002 - R553FZY042 2 - 98 R500Y221
E E M
M R553FZY003 - R553FZY043 3 50 148 R500Y221
R553FZY004 - R553FZY044 4 100 198 R500Y222
G G R553FZY005 - R553FZY045 5 150 248 R500Y222
D D R553FZY006 - R553FZY046 6 200 298 R500Y222
B B 1” x base 18
Q Q R553FZY007 - R553FZY047 7 250 348 R500Y222
A A I I I I I I C C 1” x 3/4” E
L L R553FZY008 - R553FZY048 8 300 398 R500Y223
R553FZY009 - R553FZY049 9 350 448 R500Y223
R553FZY010 - R553FZY050 10 400 498 R500Y223
O O P P R R
R553FZY011 - R553FZY051 11 450 548 R500Y224
R553FZY012 - R553FZY052 12 500 598 R500Y224
F F
G G R553FZY022 2 - 98 R500Y221
R553FZY023 3 50 148 R500Y222
R553FZY024 4 100 198 R500Y222
H H
E E M M R553FZY025 5 150 248 R500Y222
R553FZY026 6 200 298 R500Y222
R553FZY027 1-1/4” x base 18 7 250 348 R500Y222
G G
D D R553FZY028 8 300 398 R500Y223
B B Q Q
R553FZY029 9 350 448 R500Y223
A A I I I I I I
L L C C R553FZY030 10 400 498 R500Y223
R553FZY031 11 450 548 R500Y224
R553FZY032 12 500 598 R500Y224
R553D
O O P P R R A C D E F H I M N O Q R
COLLETTORI DA 1” 24 24 62 208 108 378 50 50 179 49 86 81
F COLLETTORI DA 1-1/4” 24 24 66 208 104 378 50 50 179 49 88 85
F
G G N N
Codice G x B N° di uscite P L Cassetta
H H R553ZY002 - R553ZY042 2 - 98 R500Y221
E
E M
M R553ZY003 - R553ZY043 3 50 148 R500Y221
R553ZY004 - R553ZY044 4 100 198 R500Y222
G G R553ZY005 - R553ZY045 5 150 248 R500Y222
D D R553ZY006 - R553ZY046 6 200 298 R500Y222
B B 1” x base 18
Q Q R553ZY007 - R553ZY047 7 250 348 R500Y222
A A I I I I I I C C 1” x 3/4” E
L L R553ZY008 - R553ZY048 8 300 398 R500Y223
R553ZY009 - R553ZY049 9 350 448 R500Y223
R553ZY010 - R553ZY050 10 400 498 R500Y223
R553ZY011 - R553ZY051 11 450 548 R500Y224
O O P P R R
R553ZY012 - R553ZY052 12 500 598 R500Y224
F F R553ZY022 2 - 98 R500Y221
G G
R553ZY023 3 50 148 R500Y221
R553ZY024 4 100 198 R500Y222
H H E E M M R553ZY025 5 150 248 R500Y222
R553ZY026 6 200 298 R500Y222
R553ZY027 1-1/4” x base 18 7 250 348 R500Y222
G G
D D R553ZY028 8 300 398 R500Y223
B B Q Q
R553ZY029 9 350 448 R500Y223
A A I I I I I I
L L C C R553ZY030 10 400 498 R500Y223
R553ZY031 11 450 548 R500Y224
R553ZY032 12 500 598 R500Y224
310 CAPITOLO 9 DATI TECNICI E DIMENSIONALI
