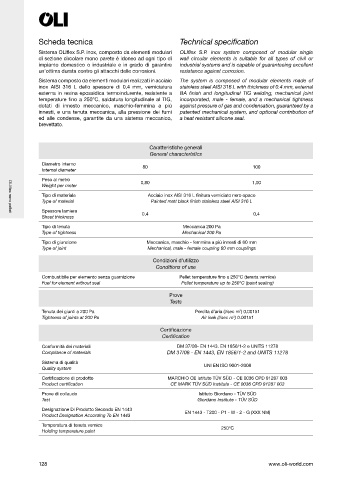

Scheda tecnica Technical specification
Sistema OLI ex S.P. inox, composto da elementi modulari OLIflex S.P. inox system composed of modular single
di sezione circolare mono parete è idoneo ad ogni tipo di wall circular elements is suitable for all types of civil or
impianto domestico o industriale e in grado di garantire industrial systems and is capable of guaranteeing excellent
un’ottima durata contro gli attacchi delle corrosioni. resistance against corrosion.
Sistema composto da elementi modulari realizzati in acciaio The system is composed of modular elements made of
inox AISI 316 L dello spessore di 0,4 mm, verniciatura stainless steel AISI 316 L with thickness of 0.4 mm, external
esterna in resina epossidica termoindurente, resistente a BA finish and longitudinal TIG welding, mechanical joint
temperature no a 250°C, saldatura longitudinale al TIG, incorporated, male - female, and a mechanical tightness
dotati di innesto meccanico, maschio-femmina a più against pressure of gas and condensation, guaranteed by a
innesti, e una tenuta meccanica, alla pressione dei fumi patented mechanical system, and optional contribution of
ed alle condense, garantite da una sistema meccanico, a heat resistant silicone seal.
brevettato.
Caratteristiche generali
General characteristics
Diametro interno 80 100
Internal diameter
Peso al metro 0,80 1,00
Weight per meter
Tipo di materiale Acciaio inox AISI 316 L nitura verniciato nero opaco
Type of material Painted matt black finish stainless steel AISI 316 L
Spessore lamiera 0,4 0,4
OLI ex nero pellet
Sheet thickness
Tipo di tenuta Meccanica 200 Pa
Type of tightness Mechanical 200 Pa
Tipo di giunzione Meccanica, maschio - femmina a più innesti di 60 mm
Type of joint Mechanical, male - female coupling 60 mm couplings
Condizioni d’utilizzo
Conditions of use
Combustibile per elemento senza guarnizione Pellet temperature no a 250°C (tenuta vernice)
Fuel for element without seal Pellet temperature up to 250°C (paint sealing)
Prove
Tests
Tenuta dei giunti a 200 Pa Perdita d’aria (l/sec m ) 0,00151
2
2
Tightness of joints at 200 Pa Air leak (l/sec m ) 0.00151
Certi cazione
Certification
Conformità dei materiali DM 37/08- EN 1443. EN 1856/1-2 e UNITS 11278
Compliance of materials DM 37/08 - EN 1443, EN 1856/1-2 and UNITS 11278
Sistema di qualità UNI EN ISO 9001-2008
Quality system
Certi cazione di prodotto MARCHIO CE Istituto TÜV SÜD - CE 0036 CPD 91287 003
Product certification CE MARK TÜV SÜD Institute - CE 0036 CPD 91287 003
Prove di collaudo Istituto Giordano - TÜV SÜD
Test Giordano Institute - TÜV SÜD
Designazione Di Prodotto Secondo EN 1443 EN 1443 - T200 - P1 - W - 2 - G (XXX NM)
Product Designation According To EN 1443
Temperatura di tenuta vernice 250°C
Holding temperature paint
