P. 205

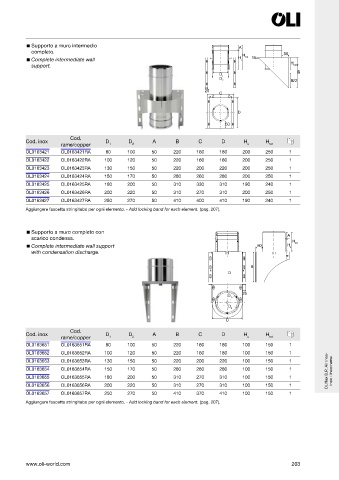

Supporto a muro intermedio A
completo. 50
Complete intermediate wall H u H tot 15
support. H tot/2
B
D 1
D 2 B/2
25 C
2 2
D
50
Cod.
Cod. inox D D A B C D H H
rame/copper 1 2 u tot
OL0163421 OL0163421RA 80 100 50 220 160 180 200 250 1
OL0163422 OL0163422RA 100 120 50 220 160 180 200 250 1
OL0163423 OL0163423RA 130 150 50 220 200 220 200 250 1
OL0163424 OL0163424RA 150 170 50 280 260 280 200 250 1
OL0163425 OL0163425RA 180 200 50 310 330 310 190 240 1
OL0163426 OL0163426RA 200 220 50 310 270 310 200 250 1
OL0163427 OL0163427RA 250 270 50 410 400 410 190 240 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
Supporto a muro completo con
scarico condensa. A H
Complete intermediate wall support 50 H u tot
with condensation discharge.
B
D
D 25
1
D 2
C
Cod.
Cod. inox D D A B C D H H
rame/copper 1 2 u tot
OL0163651 OL0163651RA 80 100 50 220 160 180 100 150 1
OL0163652 OL0163652RA 100 120 50 220 160 180 100 150 1
OL0163653 OL0163653RA 130 150 50 220 200 220 100 150 1
OL0163654 OL0163654RA 150 170 50 280 260 280 100 150 1 OLI ex D.P. Air inox- inox - inox-rame
OL0163655 OL0163655RA 180 200 50 310 270 310 100 150 1
OL0163656 OL0163656RA 200 220 50 310 270 310 100 150 1
OL0163657 OL0163657RA 250 270 50 410 370 410 100 150 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
www.oli-world.com 203
