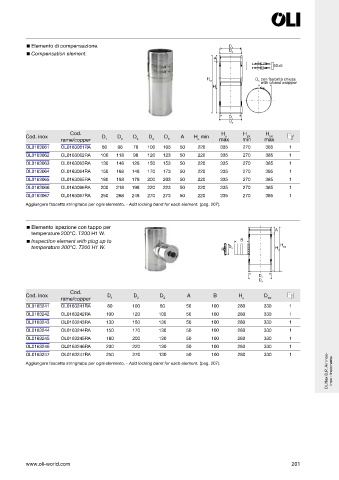

P. 203
Elemento di compensazione. D
D 4
Compensation element. 3
A
50±5
H tot D con fascetta chiusa
5
with closed wrapper
H u
D 1
D 2
Cod. H H H
Cod. inox D D D D D A H min u tot tot
rame/copper 1 2 3 4 5 u max min max
OL0163061 OL0163061RA 80 98 78 100 103 50 220 335 270 385 1
OL0163062 OL0163062RA 100 118 98 120 123 50 220 335 270 385 1
OL0163063 OL0163063RA 130 148 128 150 153 50 220 335 270 385 1
OL0163064 OL0163064RA 150 168 148 170 173 50 220 335 270 385 1
OL0163065 OL0163065RA 180 198 178 200 203 50 220 335 270 385 1
OL0163066 OL0163066RA 200 218 198 220 223 50 220 335 270 385 1
OL0163067 OL0163067RA 250 268 248 270 273 50 220 335 270 385 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
Elemento ispezione con tappo per A
temperature 200°C. T200 H1 W.
Inspection element with plug up to B
temperature 200°C. T200 H1 W. D 3 H H tot
u
D 1
D
2
Cod.
Cod. inox D D D A B H D
rame/copper 1 2 3 u tot
OL0163241 OL0163241RA 80 100 80 50 100 280 330 1
OL0163242 OL0163242RA 100 120 100 50 100 280 330 1
OL0163243 OL0163243RA 130 150 130 50 100 280 330 1
OL0163244 OL0163244RA 150 170 130 50 100 280 330 1
OL0163245 OL0163245RA 180 200 130 50 100 280 330 1
OL0163246 OL0163246RA 200 220 130 50 100 280 330 1
OL0163247 OL0163247RA 250 270 130 50 100 280 330 1
OLI ex D.P. Air inox- inox - inox-rame
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
www.oli-world.com 201
