P. 202

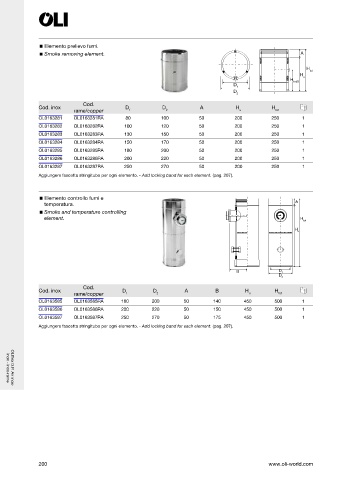

Elemento prelievo fumi.
Smoke removing element. A
H tot
H
H tot/2 u
D
1
D
2
Cod.
Cod. inox D D A H H
rame/copper 1 2 u tot
OL0163281 OL0163281RA 80 100 50 200 250 1
OL0163282 OL0163282RA 100 120 50 200 250 1
OL0163283 OL0163283RA 130 150 50 200 250 1
OL0163284 OL0163284RA 150 170 50 200 250 1
OL0163285 OL0163285RA 180 200 50 200 250 1
OL0163286 OL0163286RA 200 220 50 200 250 1
OL0163287 OL0163287RA 250 270 50 200 250 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
Elemento controllo fumi e
temperatura. A
Smoke and temperature controlling
element. H tot
H u
B D 1
D 2
Cod.
Cod. inox D D A B H H
rame/copper 1 2 u tot
OL0163585 OL0163585RA 180 200 50 140 450 500 1
OL0163586 OL0163586RA 200 220 50 150 450 500 1
OL0163587 OL0163587RA 250 270 50 175 450 500 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
inox - inox-rame
OLI ex D.P. Air inox-
