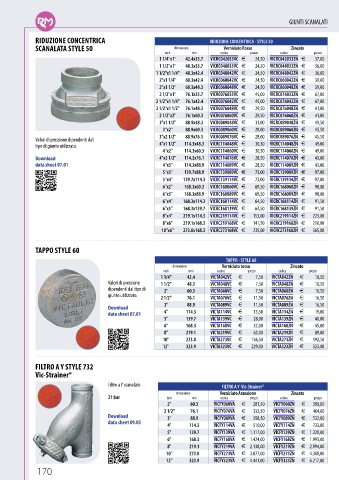

Page 172 - RMMANFREDI - LISTINO ANTINCENDIO 2023
P. 172
GIUNTI SCANALATI
RIDUZIONE CONCENTRICA RIDUZIONE CONCENTRICA - STYLE 50
SCANALATA STYLE 50 dimensione VerniciatoRosso Zincato
inch mm codice prezzo codice prezzo
1 1/4"x1" 42.4x33.7 VICRC042033VC 24,50 VICRC042033ZN 37,00
1 1/2"x1" 48.3x33.7 VICRC048033VC 24,50 VICRC048033ZN 36,00
1 1/2"x1 1/4" 48.3x42.4 VICRC048042VC 24,50 VICRC048042ZN 36,00
2"x1 1/4" 60.3x42.4 VICRC060042VC 24,50 VICRC060042ZN 39,00
2"x1 1/2" 60.3x48.3 VICRC060048VC 24,50 VICRC060048ZN 39,00
2 1/2"x1" 76.1x33.7 VICRC076033VC 45,00 VICRC076033ZN 67,00
2 1/2"x1 1/4" 76.1x42.4 VICRC076042VC 45,00 VICRC076042ZN 67,00
2 1/2"x1 1/2" 76.1x48.3 VICRC076048VC 29,50 VICRC076048ZN 41,00
2 1/2"x2" 76.1x60.3 VICRC076060VC 29,50 VICRC076060ZN 41,00
3"x1 1/2" 88.9x48.3 VICRC089048VC 31,00 VICRC089048ZN 49,50
3"x2" 88.9x60.3 VICRC089060VC 28,00 VICRC089060ZN 45,50
3"x2 1/2" 88.9x76.1 VICRC089076VC 28,00 VICRC089076ZN 45,50
Valori di pressione dipendenti dal
tipo di giunto utilizzato. 4"x1 1/2" 114.3x48.3 VICRC114048VC 30,50 VICRC114048ZN 49,00
4"x2" 114.3x60.3 VICRC114060VC 30,50 VICRC114060ZN 49,00
Download 4"x2 1/2" 114.3x76.1 VICRC114076VC 28,50 VICRC114076ZN 43,00
data sheet 07.01 4"x3" 114.3x88.9 VICRC114089VC 28,50 VICRC114089ZN 43,00
5"x3" 139.7x88.9 VICRC139089VC 73,00 VICRC139089ZN 97,00
5"x4" 139.7x114.3 VICRC139114VC 73,00 VICRC139114ZN 97,00
6"x2" 168.3x60.3 VICRC168060VC 69,50 VICRC168060ZN 98,00
6"x3" 168.3x88.9 VICRC168089VC 69,50 VICRC168089ZN 98,00
6"x4" 168.3x114.3 VICRC168114VC 64,50 VICRC168114ZN 91,50
6"x5" 168.3x139.7 VICRC168139VC 64,50 VICRC168139ZN 91,50
8"x4" 219.1x114.3 VICRC219114VC 153,00 VICRC219114ZN 223,00
8"x6" 219.1x168.3 VICRC219168VC 141,50 VICRC219168ZN 210,00
10"x6" 273.0x168.3 VICRC273168VC 235,00 VICRC273168ZN 365,00
TAPPO STYLE 60
TAPPO - STYLE 60
dimensione Verniciato rosso Zincato
inch mm codice prezzo codice prezzo
1 1/4" 42.4 VICTA042VC 7,50 VICTA042ZN 10,50
Valori di pressione 1 1/2" 48.3 VICTA048VC 7,50 VICTA048ZN 10,50
dipendenti dal tipo di 2" 60.3 VICTA060VC 7,50 VICTA060ZN 10,50
giunto utilizzato. 2 1/2" 76.1 VICTA076VC 11,50 VICTA076ZN 16,50
3" 88.9 VICTA089VC 11,50 VICTA089ZN 16,50
Download
data sheet 07.01 4" 114.3 VICTA114VC 13,50 VICTA114ZN 19,00
5" 139.7 VICTA139VC 28,00 VICTA139ZN 40,00
6" 168.3 VICTA168VC 32,00 VICTA168ZN 45,00
8" 219.1 VICTA219VC 63,00 VICTA219ZN 89,00
10" 273.0 VICTA273VC 136,50 VICTA273ZN 192,50
12" 323.9 VICTA323VC 229,00 VICTA323ZN 323,00
FILTRO A Y STYLE 732
Vic-Strainer®
Filtro a Y scanalato FILTRO A Y Vic-Strainer®
dimensione VerniciatoArancione Zincato
21 bar inch mm codice prezzo codice prezzo
2" 60.3 VICFY060VA 281,50 VICFY060ZN 390,00
2 1/2" 76.1 VICFY076VA 332,50 VICFY076ZN 464,00
Download 3" 88.9 VICFY089VA 358,50 VICFY089ZN 532,00
data sheet 09.03
4" 114.3 VICFY114VA 510,00 VICFY114ZN 733,00
5" 139.7 VICFY139VA 1.117,00 VICFY139ZN 1.328,00
6" 168.3 VICFY168VA 1.424,00 VICFY168ZN 1.993,00
8" 219.1 VICFY219VA 2.138,00 VICFY219ZN 2.994,00
10" 273.0 VICFY273VA 3.077,00 VICFY273ZN 4.308,00
12" 323.9 VICFY323VA 4.441,00 VICFY323ZN 6.217,00
170
