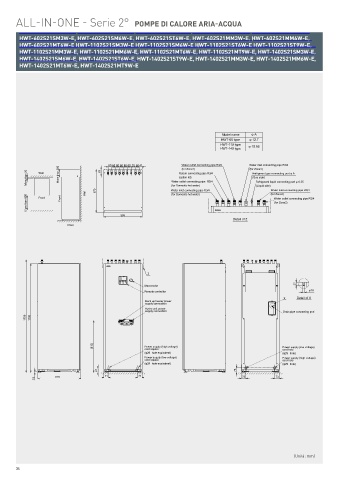

ALL-IN-ONE - Serie 2° POMPE DI CALORE ARIA-ACQUA

HWT-602S21SM3W-E, HWT-602S21SM6W-E, HWT-602S21ST6W-E, HWT-602S21MM3W-E, HWT-602S21MM6W-E,
HWT-602S21MT6W-E HWT-1102S21SM3W-E HWT-1102S21SM6W-E HWT-1102S21ST6W-E HWT-1102S21ST9W-E,
HWT-1102S21MM3W-E, HWT-1102S21MM6W-E, HWT-1102S21MT6W-E, HWT-1102S21MT9W-E, HWT-1402S21SM3W-E,
HWT-1402S21SM6W-E, HWT-1402S21ST6W-E, HWT-1402S21ST9W-E, HWT-1402S21MM3W-E, HWT-1402S21MM6W-E,
HWT-1402S21MT6W-E, HWT-1402S21MT9W-E

Model name φ A
HWT-60 type φ 12.7
HWT-110 type
HWT-140 type φ 15.88

60 60 60 60 60 60 70 60 41 Water outlet connecting pipe R3/4 Water inlet connecting pipe R3/4
(for Zone1)
(for Zone1)
63
More than 20 Wall More than 200 Water outlet connecting pipe R3/4 Refrigerant gas connecting port φ A
Return connecting pipe R3/4
(option kit)
(Gas side)
Refrigerant liquid connecting port φ 6.35
(for Domestic hot water)
(Liquid side)
Water inlet connecting pipe R3/4
Wall 670 Water inlet connecting pipe R3/4 (for Zone2)
(for Domestic hot water)
More than 800 Front (for Zone2)
Front
Water outlet connecting pipe R3/4
595
Detail of Z
Floor

Z
27
Manometer
φ16
Remote controller
X Detail of X
Back up heater power
supply connection
Hydro unit power
supply connection Drain pipe connecting port
1759 1700

(812) Power supply (high voltage) Power supply (low voltage)
cord square
cord hole
Power supply (low voltage) Power supply (high voltage)
cord square cord hole
67 73
670 71 71 73 73
15

(Unità: mm)
