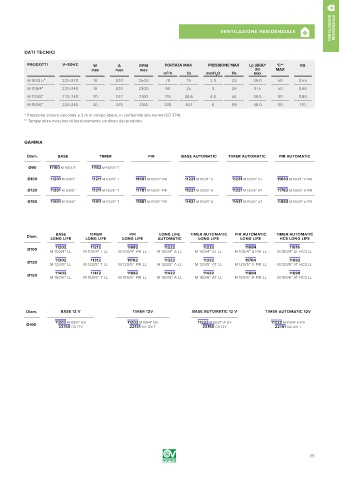

Page 35 - VORTICE - CATALOGO 2019

VENTILAZIONE RESIDENZIALE

VENTILAZIONE RESIDENZIALE A

DATI TECNICI

PRODOTTI V ~ 50HZ W A RPM PORTATA MAX PRESSIONE MAX Lp dB(A)* °C** KG
max max max 3m MAX
m /h l/s mmH O Pa max
3
2
M 90/3.5” 220-240 18 0.10 2500 70 19 2.3 23 39.0 50 0.55
M 100/4” 220-240 18 0.10 2300 90 25 3 29 37.5 50 0.60
M 120/5” 220-240 20 0.12 2100 175 48.6 4.5 44 39.5 50 0.80
M 150/6” 220-240 30 0.15 2100 335 93.1 6 59 46.0 50 1.10

* Pressione sonora calcolata a 3 m in campo libero, in conformità alla norma ISO 3741.
** Temperatura massima di funzionamento continuo del prodotto.

GAMMA

Diam. BASE TIMER PIR BASE AUTOMATIC TIMER AUTOMATIC PIR AUTOMATIC
Ø90 11150 M 90/3.5” 11153 M 90/3.5” T - - - -

Ø100 11201 M 100/4” 11211 M 100/4” T 11681 M 100/4” PIR 11221 M 100/4” A 11231 M 100/4” AT 11683 M 100/4” A PIR
Ø120 11301 M 120/5” 11311 M 120/5” T 11781 M 120/5” PIR 11321 M 120/5” A 11331 M 120/5” AT 11783 M 120/5” A PIR

Ø150 11401 M 150/6” 11411 M 150/6” T 11881 M 150/6” PIR 11421 M 150/6” A 11431 M 150/6” AT 11883 M 150/6” A PIR

Diam. BASE TIMER PIR LONG LIFE TIMER AUTOMATIC PIR AUTOMATIC TIMER AUTOMATIC
LONG LIFE LONG LIFE LONG LIFE AUTOMATIC LONG LIFE LONG LIFE HCS LONG LIFE
11202 11212 11682 11222 11232 11684 11616
Ø100 M 100/4” LL M 100/4” T LL M 100/4” PIR LL M 100/4” A LL M 100/4” AT LL M 100/4” A PIR LL M 100/4” AT HCS LL
11302 11312 11782 11322 11332 11784 11692
Ø120
M 120/5” LL M 120/5” T LL M 120/5” PIR LL M 120/5” A LL M 120/5” AT LL M 120/5” A PIR LL M 120/5” AT HCS LL
11402 11412 11882 11422 11432 11884 11698
Ø150
M 150/6” LL M 150/6” T LL M 150/6” PIR LL M 150/6” A LL M 150/6” AT LL M 150/6” A PIR LL M 150/6” AT HCS LL

Diam. BASE 12 V TIMER 12V BASE AUTOMATIC 12 V TIMER AUTOMATIC 12V
11203 M 100/4” 12V 11203 M 100/4” 12V 11223 M 100/4” A 12V 11223 M 100/4” A 12V
Ø100
22150 GA 12V 22151 GA 12V T 22150 GA 12V 22151 GA 12V T
