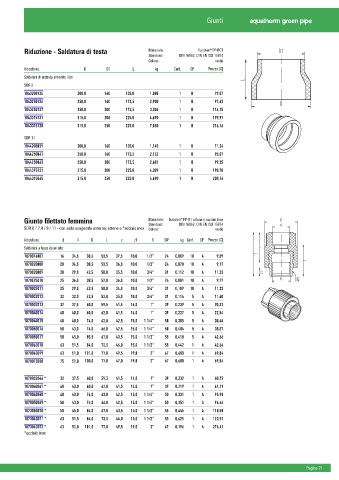

P. 23

Giunti         aquatherm green pipe




          Riduzione - Saldatura di testa             Materiale:        fusiolen® PP-RCT            D1
                                                     Standard:   DIN 16962, DIN EN ISO 15874
                                                     Colore:                 verde
          Articolo no.         D      D1        L      kg     Conf.  GP   Prezzo [€]
          Saldatura di testa da entrambi i lati
                                                                                       L
          SDR 9
          1043200125        200,0     160    135,0    1,588     1   B       79,07
          1043250126        250,0     160    172,5    2,900     1   B       97,62                  D
          1043250127        250,0     200    172,5    3,206     1   B       114,15
          1043315131        315,0     200    225,0    4,690     1   B       199,97
          1043315128        315,0     250    225,0    7,050     1   B       216,16

          SDR 11
          1044200059        200,0     160    135,0    1,140     1   B       71,24
          1044250061        250,0     160    172,5    2,152     1   B       95,07
          1044250063        250,0     200    172,5    2,681     1   B       99,35
          1044315121        315,0     200    225,0    4,389     1   B       190,78
          1044315065        315,0     250    225,0    4,690     1   B       200,76








          Giunto filettato femmina                   Materiale:   fusiolen® PP-R / ottone o acciaio inox   D
          SDR 6 / 7,4 / 9 / 11 - con sede esagonale esterna; ottone o *acciaio inox  Standard:   DIN 16962, DIN EN ISO 15874  d
                                                                             verde
                                                     Colore:
          Articolo no.  d   l    D    L     z   z1    R    SW   kg Conf.  GP Prezzo [€]
          Saldatura a tasca da un lato                                                      l
          1070016007  16  34,5  38,5  50,5  37,5  10,0  1/2“  24  0,089  10  A  9,09      L
          1070020008  20  34,5  38,5  50,5  36,0  10,0  1/2“  24  0,078  10  A  9,17                        z
          1070020009  20  29,0  43,5  50,0  35,5  10,0  3/4“  31  0,112  10  A  11,23       z 1
          1070025010  25  36,0  38,5  52,0  36,0  10,0  1/2“  24  0,081  10  A  9,17               R     SW
          1070025011  25  29,0  43,5  50,0  34,0  10,0  3/4“  31  0,109  10  A  11,23
          1070032012  32  32,0  43,5  53,0  35,0  10,0  3/4“  31  0,114  5  A  11,60
          1070032013  32  37,5  60,0  59,5  41,5  14,0  1“  39  0,239  5  A  20,32
          1070040014  40  40,0  60,0  62,0  41,5  14,0  1“  39  0,227  5  A  22,54
          1070040015  40  40,0  74,0  63,0  42,5  15,0  1 1/4“  50  0,385  5  A  38,46
          1070050016  50  43,0  74,0  66,0  42,5  15,0  1 1/4“  50  0,404  5  A  38,07
          1070050017  50  45,0  85,5  67,0  43,5  15,0  1 1/2“  55  0,418  5  A  42,66
          1070063018  63  51,5  84,0  73,5  46,0  15,0  1 1/2“  55  0,442  1  A  42,66
          1070063019  63  51,0  101,0  77,0  49,5  19,0  2“  67  0,600  1  A  69,84
          1070075020  75  51,0  100,0  77,0  47,0  19,0  2“  67  0,608  1  A  69,84

          1070032066 *  32  37,5  60,0  59,5  41,5  14,0  1“  39  0,232  1  A  60,75
          1070040067 *  40  40,0  60,0  62,0  41,5  14,0  1“  39  0,219  1  A  61,19
          1070040068 *  40  40,0  74,0  63,0  42,5  15,0  1 1/4“  50  0,331  1  A  95,98
          1070050069 *  50  43,0  74,0  66,0  42,5  15,0  1 1/4“  50  0,351  1  A  96,44
          1070050070 *  50  45,0  84,0  67,0  43,5  15,0  1 1/2“  55  0,445  1  A  118,58
          1070063071 *  63  51,5  84,0  73,5  46,0  15,0  1 1/2“  55  0,425  1  A  123,51
          1070063072 *  63  51,0  101,0  77,0  49,5  19,0  2“  67  0,196  1  A  276,41
          *acciaio inox
