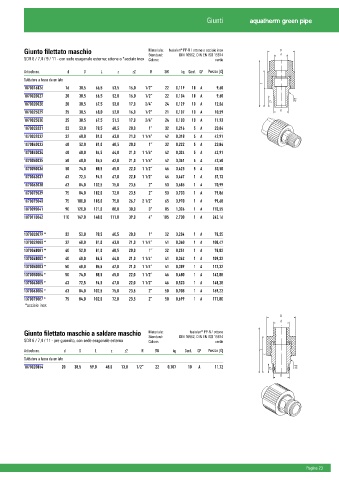

Page 25 - AQUATHERM - LISTINO REV 05-2024 - FIDRA

Giunti aquatherm green pipe

Giunto filettato maschio Materiale: fusiolen® PP-R / ottone o acciaio inox D d
SDR 6 / 7,4 / 9 / 11 - con sede esagonale esterna; ottone o *acciaio inox Standard: DIN 16962, DIN EN ISO 15874
Colore:
verde
Articolo no. d D L z z2 R SW kg Conf. GP Prezzo [€]
Saldatura a tasca da un lato
1070016026 16 38,5 66,5 53,5 16,0 1/2“ 22 0,119 10 A 9,60 L z
1070020027 20 38,5 66,5 52,0 16,0 1/2“ 22 0,104 10 A 9,60 SW
1070020028 20 38,5 67,5 53,0 17,0 3/4“ 24 0,129 10 A 12,06 z 2
1070025029 25 38,5 68,0 52,0 16,0 1/2“ 21 0,107 10 A 10,59 R
1070025030 25 38,5 67,5 51,5 17,0 3/4“ 24 0,103 10 A 11,93
1070032031 32 53,0 78,5 60,5 20,0 1“ 32 0,216 5 A 23,84
1070032032 32 68,0 81,0 63,0 21,0 1 1/4“ 42 0,318 5 A 42,91
1070040033 40 52,0 81,0 60,5 20,0 1“ 32 0,222 5 A 23,84
1070040034 40 68,0 84,5 64,0 21,0 1 1/4“ 42 0,324 5 A 42,91
1070050035 50 68,0 85,5 62,0 21,0 1 1/4“ 42 0,351 5 A 42,50
1070050036 50 74,0 88,5 65,0 22,0 1 1/2“ 46 0,425 5 A 53,50
1070063037 63 72,5 94,5 67,0 22,0 1 1/2“ 46 0,467 1 A 57,13
1070063038 63 84,0 102,5 75,0 23,5 2“ 50 0,685 1 A 70,99
1070075039 75 84,0 102,0 72,0 23,5 2“ 50 0,733 1 A 79,86
1070075040 75 100,0 105,0 75,0 26,7 2 1/2“ 65 0,970 1 A 99,68
1070090041 90 120,0 121,0 88,0 30,0 3“ 85 1,326 1 A 170,55
1070110042 110 147,0 148,0 111,0 39,0 4“ 105 2,730 1 A 243,16

1070032079 * 32 53,0 78,5 60,5 20,0 1“ 32 0,204 1 A 78,25
1070032080 * 32 68,0 81,0 63,0 21,0 1 1/4“ 41 0,360 1 A 108,47
1070040081 * 40 52,0 81,0 60,5 20,0 1“ 32 0,251 1 A 78,82
1070040082 * 40 68,0 84,5 64,0 21,0 1 1/4“ 41 0,362 1 A 109,32
1070050083 * 50 68,0 85,5 62,0 21,0 1 1/4“ 41 0,389 1 A 112,32
1070050084 * 50 74,0 88,5 65,0 22,0 1 1/2“ 46 0,480 1 A 142,88
1070063085 * 63 72,5 94,5 67,0 22,0 1 1/2“ 46 0,523 1 A 148,28
1070063086 * 63 84,0 102,5 75,0 23,5 2“ 50 0,708 1 A 169,23
1070075087 * 75 84,0 102,0 72,0 23,5 2“ 50 0,699 1 A 171,80
*acciaio inox

D
d
Giunto filettato maschio a saldare maschio Materiale: DIN 16962, DIN EN ISO 15874
fusiolen® PP-R / ottone
Standard:
SDR 6 / 7,4 / 11 - pre-guarnito, con sede esagonale esterna Colore: verde
Articolo no. d D L z z2 R SW kg Conf. GP Prezzo [€] L z
Saldatura a tasca da un lato
1070020054 20 38,5 59,0 48,0 13,0 1/2“ 22 0,107 10 A 11,72 z 2 SW
R
