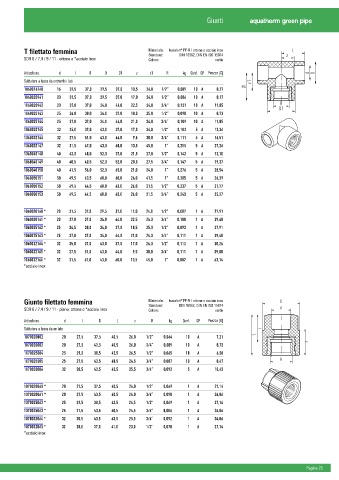

Page 27 - AQUATHERM - LISTINO REV 05-2024 - FIDRA

Giunti aquatherm green pipe

T filettato femmina Materiale: fusiolen® PP-R / ottone o acciaio inox z l
SDR 6 / 7,4 / 9 / 11 - ottone o *acciaio inox Standard: DIN 16962, DIN EN ISO 15874
Colore:
verde
Articolo no. d l l1 D D1 z z1 R kg Conf. GP Prezzo [€] d D
Saldatura a tasca da entrambi i lati z 1
1060016140 16 31,5 37,0 29,5 37,0 18,5 24,0 1/2“ 0,089 10 A 8,17 l1
1060020141 20 31,5 37,0 29,5 37,0 17,0 24,0 1/2“ 0,086 10 A 8,17
1060020142 20 37,0 37,0 34,0 44,0 22,5 24,0 3/4“ 0,121 10 A 11,85 R
D1
1060025143 25 34,0 38,0 34,0 37,0 18,0 25,0 1/2“ 0,090 10 A 8,73
1060025144 25 37,0 37,0 34,0 44,0 21,0 24,0 3/4“ 0,109 10 A 11,85
1060032145 32 35,0 37,0 43,0 37,0 17,0 24,0 1/2“ 0,103 5 A 12,36
1060032146 32 27,5 51,0 43,0 44,0 9,5 38,0 3/4“ 0,111 5 A 16,51
1060032147 32 31,5 67,0 43,0 60,0 13,5 45,0 1“ 0,255 5 A 27,26
1060040148 40 42,0 40,0 52,0 37,0 21,5 27,0 1/2“ 0,142 5 A 13,10
1060040149 40 40,5 40,5 52,0 52,0 20,0 27,5 3/4“ 0,147 5 A 19,37
1060040150 40 41,5 56,0 52,0 60,0 21,0 34,0 1“ 0,276 5 A 28,54
1060050151 50 49,5 63,5 68,0 60,0 26,0 41,5 1“ 0,385 5 A 36,39
1060050152 50 49,5 44,5 68,0 43,0 26,0 31,5 1/2“ 0,237 5 A 21,77
1060050153 50 49,5 44,5 68,0 43,0 26,0 31,5 3/4“ 0,243 5 A 25,37

1060020160 * 20 31,5 37,0 29,5 37,0 17,0 24,0 1/2“ 0,087 1 A 27,91
1060020161 * 20 37,0 37,0 34,0 44,0 22,5 24,0 3/4“ 0,108 1 A 39,48
1060025162 * 25 34,5 38,0 34,0 37,0 18,5 25,0 1/2“ 0,093 1 A 27,91
1060025163 * 25 37,0 37,0 34,0 44,0 21,0 24,0 3/4“ 0,111 1 A 39,48
1060032164 * 32 35,0 37,0 43,0 37,0 17,0 24,0 1/2“ 0,113 1 A 30,24
1060032165 * 32 27,5 51,0 43,0 44,0 9,5 38,0 3/4“ 0,111 1 A 39,08
1060032166 * 32 31,5 67,0 43,0 60,0 13,5 45,0 1“ 0,082 1 A 63,14
*acciaio inox

Giunto filettato femmina Materiale: fusiolen® PP-R / ottone o acciaio inox D
Standard:
DIN 16962, DIN EN ISO 15874
SDR 6 / 7,4 / 9 / 11 - piano; ottone o *acciaio inox Colore: verde d
Articolo no. d l D L z R kg Conf. GP Prezzo [€]
Saldatura a tasca da un lato l
1070020002 20 27,5 37,5 40,5 26,0 1/2“ 0,064 10 A 7,21 L
1070020003 20 27,5 43,5 40,5 26,0 3/4“ 0,089 10 A 8,72 z
1070025004 25 29,5 38,5 42,5 26,5 1/2“ 0,065 10 A 6,58
1070025005 25 27,5 43,5 40,5 24,5 3/4“ 0,087 10 A 8,47 R
1070032006 32 30,5 43,5 43,5 25,5 3/4“ 0,092 5 A 10,43

1070020060 * 20 27,5 37,5 40,5 26,0 1/2“ 0,069 1 A 27,14
1070020061 * 20 27,5 43,5 40,5 26,0 3/4“ 0,090 1 A 34,86
1070025062 * 25 29,5 38,5 42,5 26,5 1/2“ 0,069 1 A 27,14
1070025063 * 25 27,5 43,5 40,5 24,5 3/4“ 0,086 1 A 34,86
1070032064 * 32 30,5 43,5 43,5 25,5 3/4“ 0,092 1 A 34,86
1070032065 * 32 28,0 37,0 41,0 23,0 1/2“ 0,078 1 A 27,14
*acciaio inox
