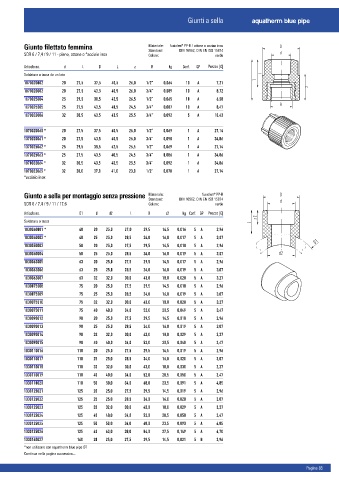

Page 87 - AQUATHERM - LISTINO REV 05-2024 - FIDRA

Giunti a sella aquatherm blue pipe

Giunto filettato femmina Materiale: fusiolen® PP-R / ottone o acciao inox D
DIN 16962, DIN EN ISO 15874
Standard:
SDR 6 / 7,4 / 9 / 11 - piano, ottone o *acciaio inox Colore: verde d
Articolo no. d l D L z R kg Conf. GP Prezzo [€]
Saldatura a tasca da un lato l
1070020002 20 27,5 37,5 40,5 26,0 1/2“ 0,064 10 A 7,21 L
1070020003 20 27,5 43,5 40,5 26,0 3/4“ 0,089 10 A 8,72 z
1070025004 25 29,5 38,5 42,5 26,5 1/2“ 0,065 10 A 6,58
R
1070025005 25 27,5 43,5 40,5 24,5 3/4“ 0,087 10 A 8,47
1070032006 32 30,5 43,5 43,5 25,5 3/4“ 0,092 5 A 10,43

1070020060 * 20 27,5 37,5 40,5 26,0 1/2“ 0,069 1 A 27,14
1070020061 * 20 27,5 43,5 40,5 26,0 3/4“ 0,090 1 A 34,86
1070025062 * 25 29,5 38,5 42,5 26,5 1/2“ 0,069 1 A 27,14
1070025063 * 25 27,5 43,5 40,5 24,5 3/4“ 0,086 1 A 34,86
1070032064 * 32 30,5 43,5 43,5 25,5 3/4“ 0,092 1 A 34,86
1070032065 * 32 28,0 37,0 41,0 23,0 1/2“ 0,078 1 A 27,14
*acciaio inox

Giunto a sella per montaggio senza pressione Materiale: fusiolen® PP-R D
Standard: DIN 16962, DIN EN ISO 15874 d
SDR 6 / 7,4 / 9 / 11 / 17,6 Colore: verde
Articolo no. D1 d d2 l D z2 kg Conf. GP Prezzo [€]
z 2
Saldatura a tasca
l
1030040001 * 40 20 25,0 27,0 29,5 14,5 0,016 5 A 2,96
1030040002 * 40 25 25,0 28,5 34,0 16,0 0,017 5 A 3,07
D1
1030050003 50 20 25,0 27,5 29,5 14,5 0,018 5 A 2,96
1030050004 50 25 25,0 28,5 34,0 16,0 0,019 5 A 3,07 d2
1030063005 63 20 25,0 27,5 29,5 14,5 0,017 5 A 2,96
1030063006 63 25 25,0 28,5 34,0 16,0 0,019 5 A 3,07
1030063007 63 32 32,0 30,0 43,0 18,0 0,028 5 A 3,27
1030075008 75 20 25,0 27,5 29,5 14,5 0,018 5 A 2,96
1030075009 75 25 25,0 28,5 34,0 16,0 0,019 5 A 3,07
1030075010 75 32 32,0 30,0 43,0 18,0 0,028 5 A 3,27
1030075011 75 40 40,0 34,0 52,0 20,5 0,049 5 A 3,47
1030090012 90 20 25,0 27,5 29,5 14,5 0,018 5 A 2,96
1030090013 90 25 25,0 28,5 34,0 16,0 0,019 5 A 3,07
1030090014 90 32 32,0 30,0 43,0 18,0 0,029 5 A 3,27
1030090015 90 40 40,0 34,0 52,0 20,5 0,048 5 A 3,47
1030110016 110 20 25,0 27,5 29,5 14,5 0,019 5 A 2,96
1030110017 110 25 25,0 28,5 34,0 16,0 0,020 5 A 3,07
1030110018 110 32 32,0 30,0 43,0 18,0 0,030 5 A 3,27
1030110019 110 40 40,0 34,0 52,0 20,5 0,050 5 A 3,47
1030110020 110 50 50,0 34,0 68,0 23,5 0,091 5 A 4,85
1030125021 125 20 25,0 27,5 29,5 14,5 0,019 5 A 2,96
1030125022 125 25 25,0 28,5 34,0 16,0 0,020 5 A 3,07
1030125023 125 32 32,0 30,0 43,0 18,0 0,029 5 A 3,27
1030125024 125 40 40,0 34,0 52,0 20,5 0,050 5 A 3,47
1030125025 125 50 50,0 34,0 68,0 23,5 0,090 5 A 4,85
1030125026 125 63 63,0 38,0 84,0 27,5 0,149 5 A 6,70
1030160027 160 20 25,0 27,5 29,5 14,5 0,021 5 B 2,96
*non utilizzare con aquatherm blue pipe OT
Continua nella pagina successiva....
