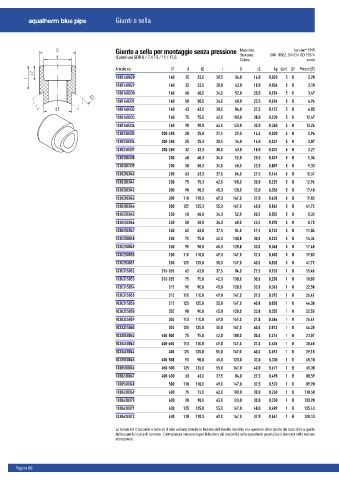

aquatherm blue pipe Giunti a sella

D Giunto a sella per montaggio senza pressione Materiale: fusiolen® PP-R
d (Continua) SDR 6 / 7,4 / 9 / 11 / 17,6 Standard: DIN 16962, DIN EN ISO 15874
Colore: verde
Articolo no. D1 d d2 l D z2 kg Conf. GP Prezzo [€]
z 2
1030160028 160 25 25,0 28,5 34,0 16,0 0,023 5 B 2,98
l
1030160029 160 32 32,0 30,0 43,0 18,0 0,034 5 B 3,18
1030160030 160 40 40,0 34,0 52,0 20,5 0,054 5 B 3,47
D1
1030160031 160 50 50,0 34,0 68,0 23,5 0,094 5 B 4,94
d2 1030160032 160 63 63,0 38,0 84,0 27,5 0,157 5 B 6,85
1030160033 160 75 75,0 42,0 100,0 30,0 0,238 5 B 12,47
1030160034 160 90 90,0 45,0 120,0 33,0 0,360 5 B 13,24
1030250035 200-250 20 25,0 27,5 29,5 14,5 0,020 5 B 2,96
1030250036 200-250 25 25,0 28,5 34,0 16,0 0,021 5 B 3,07
1030250037 200-250 32 32,0 30,0 43,0 18,0 0,031 5 B 3,27
1030200038 200 40 40,0 34,0 52,0 20,5 0,049 5 B 5,36
1030200039 200 50 50,0 34,0 68,0 23,5 0,087 5 B 9,33
1030200040 200 63 63,0 37,5 84,0 27,5 0,146 5 B 10,57
1030200041 200 75 75,0 42,0 100,0 30,0 0,225 5 B 12,96
1030200042 200 90 90,0 45,0 120,0 33,0 0,356 5 B 17,48
1030200043 200 110 110,0 49,0 147,0 37,0 0,638 5 B 19,83
1030200044 200 125 125,0 55,0 167,0 40,0 0,862 5 B 41,72
1030250045 250 40 40,0 34,0 52,0 20,5 0,053 5 B 8,33
1030250046 250 50 50,0 34,0 68,0 23,5 0,090 5 B 8,70
1030250047 250 63 63,0 37,5 84,0 27,5 0,152 5 B 11,04
1030250048 250 75 75,0 42,0 100,0 30,0 0,222 5 B 14,36
1030250049 250 90 90,0 45,0 120,0 33,0 0,348 5 B 17,48
1030250050 250 110 110,0 49,0 147,0 37,0 0,602 5 B 19,83
1030250051 250 125 125,0 55,0 167,0 40,0 0,820 5 B 41,72
1030315052 315-355 63 63,0 37,5 84,0 27,5 0,153 1 B 15,45
1030315053 315-355 75 75,0 42,0 100,0 30,0 0,230 1 B 18,83
1030315054 315 90 90,0 45,0 120,0 33,0 0,363 1 B 22,50
1030315055 315 110 110,0 49,0 147,0 37,0 0,592 1 B 26,41
1030315056 315 125 125,0 55,0 167,0 40,0 0,830 1 B 44,38
1030355058 355 90 90,0 45,0 120,0 33,0 0,355 1 B 22,50
1030355059 355 110 110,0 49,0 147,0 37,0 0,586 1 B 26,41
1030355060 355 125 125,0 55,0 167,0 40,0 0,813 1 B 44,38
1030500062 400-500 75 75,0 42,0 100,0 30,0 0,216 1 B 23,07
1030450063 400-450 110 110,0 49,0 147,0 37,0 0,535 1 B 30,68
1030400064 400 125 125,0 55,0 167,0 40,0 0,693 1 B 39,18
1030500065 400-500 90 90,0 45,0 120,0 33,0 0,330 1 B 45,10
1030500066 450-500 125 125,0 55,0 167,0 40,0 0,671 1 B 65,38
1030630067 400-630 63 63,0 37,5 84,0 27,5 0,498 1 B 80,59
1030560068 500 110 110,0 49,0 147,0 37,5 0,533 1 B 89,90
1030630069 630 75 75,0 42,0 100,0 30,0 0,260 1 B 118,58
1030630070 630 90 90,0 45,0 120,0 33,0 0,350 1 B 133,98
1030630071 630 125 125,0 55,0 167,0 40,0 0,689 1 B 135,43
1030630072 630 110 110,0 49,0 147,0 37,0 0,567 1 B 120,13

La tenuta tra il raccordo a sella ed il tubo avviene tramite la fusione dell‘inserto maschio e lo spessore della parete del tubo oltre a quella
delle superfici curce di contatto. L‘attrezzatura necessaria per la fusione dei raccordi a sella aquatherm green pipe è elencata nella sezione
attrezzatura.
