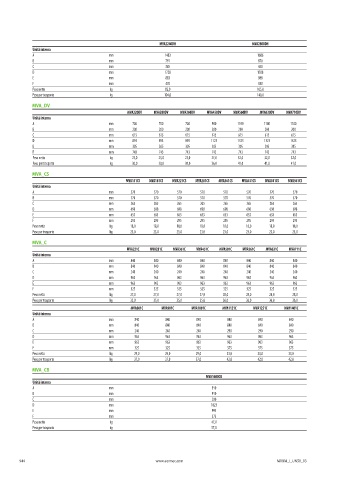

Page 946 - AERMEC - CATALOGO PRODOTTI 2024 - FIDRA

MVA2240DH MVA2800DH
Unità interna
A mm 1483 1686
B mm 791 870
C mm 385 450
D mm 1758 1788
E mm 883 988
F mm 470 580
Peso netto kg 82,0 105,0
Peso per trasporto kg 104,0 140,0
MVA_DV
MVA220DV MVA280DV MVA360DV MVA450DV MVA560DV MVA630DV MVA710DV
Unità interna
A mm 700 700 700 900 1100 1100 1100
B mm 200 200 200 200 200 200 200
C mm 615 615 615 615 615 615 615
D mm 893 893 893 1123 1323 1323 1323
E mm 305 305 305 305 305 305 305
F mm 743 743 743 743 743 743 743
Peso netto kg 23,0 23,0 23,0 27,0 32,0 32,0 32,0
Peso per trasporto kg 30,0 30,0 30,0 36,0 41,0 41,0 41,0
MVA_CS
MVA151CS MVA181CS MVA221CS MVA281CS MVA361CS MVA451CS MVA501CS MVA561CS
Unità interna
A mm 570 570 570 570 570 570 570 570
B mm 570 570 570 570 570 570 570 570
C mm 265 265 265 265 265 265 265 265
D mm 698 698 698 698 698 698 698 698
E mm 653 653 653 653 653 653 653 653
F mm 295 295 295 295 295 295 295 295
Peso netto kg 18,0 18,0 18,0 18,0 18,0 18,0 18,0 18,0
Peso per trasporto kg 23,0 23,0 23,0 23,0 23,0 23,0 23,0 23,0
MVA_C
MVA221C MVA281C MVA361C MVA451C MVA501C MVA561C MVA631C MVA711C
Unità interna
A mm 840 840 840 840 840 840 840 840
B mm 840 840 840 840 840 840 840 840
C mm 240 240 240 240 240 240 240 240
D mm 963 963 963 963 963 963 963 963
E mm 963 963 963 963 963 963 963 963
F mm 325 325 325 325 325 325 325 325
Peso netto kg 27,0 27,0 27,0 27,0 28,0 28,0 28,0 28,0
Peso per trasporto kg 35,0 35,0 35,0 35,0 36,0 36,0 36,0 36,0
MVA801C MVA901C MVA1001C MVA1121C MVA1251C MVA1401C
Unità interna
A mm 840 840 840 840 840 840
B mm 840 840 840 840 840 840

C mm 240 240 240 290 290 290
D mm 963 963 963 963 963 963
E mm 963 963 963 963 963 963
F mm 325 325 325 375 375 375
Peso netto kg 29,0 29,0 29,0 33,0 33,0 33,0
Peso per trasporto kg 37,0 37,0 37,0 42,0 42,0 42,0
MVA_CB
MVA1600CB
Unità interna
A mm 910
B mm 910
C mm 290
D mm 1023
E mm 993
F mm 375 SISTEMI VRF
Peso netto kg 47,0
Peso per trasporto kg 57,0
