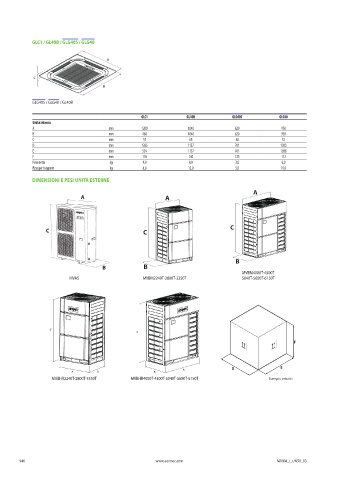

GLC1 / GL40B / GLG40S / GLG40

A

C
B

GLG40S / GLG40 / GL40B

GLC1 GL40B GLG40S GLG40
Unità interna
A mm 1200 1040 620 950
B mm 460 1040 620 950
C mm 55 65 48 52
D mm 1265 1137 701 1033
E mm 536 1137 701 1038

F mm 118 140 125 112
Peso netto kg 4,0 8,0 3,0 6,0
Peso per trasporto kg 6,0 12,0 5,0 10,0

DIMENSIONI E PESI UNITÀ ESTERNE
A
A A

C
C C

B
B B
MVBM4000T-4500T
MVAS MVBM2240T-2800T-3350T 5040T-5600T-6150T

C
C
F

D E
A
A B B
MVBHR2240T-2800T-3350T MVBHR4000T-4500T-5040T-5600T-6150T Esempio imballo

SISTEMI VRF

946 www.aermec.com MVBM_I_UN50_03
