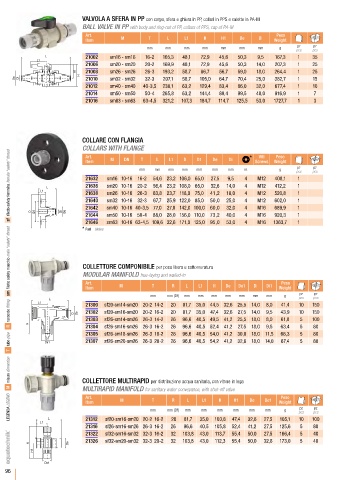

VALVOLA A SFERA IN PP con corpo, sfera e ghiera in PP, collari in PPS e calotte in PA-M
BALL VALVE IN PP with body and ring-nut of PP, collars of PPS, cap of PA-M
Art. Peso

Item M T L L1 H H1 De Di Weight
mm mm mm mm mm mm mm g pcs pcs
pz
pz
L 21002 sm16 - sm16 16-2 165,3 48,1 72,9 45,6 50,3 9,5 167,3 1 35
L1
21006 sm20 - sm20 20-2 169,9 48,1 72,9 45,6 50,3 14,0 207,3 1 25
H1 21008 sm26 - sm26 26-3 193,2 58,7 86,7 56,7 59,0 18,0 264,4 1 25
H
De Di 21010 sm32 - sm32 32-3 207,1 58,7 105,0 64,7 70,4 25,0 382,7 1 15
21012 sm40 - sm40 40-3,5 238,1 63,2 129,4 83,4 86,0 32,0 677,4 1 10
21014 sm50 - sm50 50-4 265,8 63,2 144,4 89,4 99,5 40,0 916,9 1 7
21016 sm63 - sm63 63-4,5 321,2 107,3 184,7 114,7 125,5 53,0 1727,7 1 3

COLLARE CON FLANGIA
COLLARS WITH FLANGE
LEGENDA LEGEND misure dimension tubo pipe raccordo fitting filetto safety maschio male “safety” thread filetto safety femmina female “safety” thread
Art. * Viti Peso

Item M DN T L L1 D D1 De Di Screws Weight
mm mm mm mm mm mm mm nr. g pz pz
pcs pcs
21632 sm16 10-16 16-2 54,6 23,2 106,0 65,0 27,5 9,5 4 M12 408,1 1
L 21636 sm20 10-16 20-2 56,4 23,2 106,0 65,0 32,6 14,0 4 M12 412,2 1
L1
21638 sm26 10-16 26-3 63,8 23,7 118,0 75,0 41,2 18,0 4 M12 520,8 1
21640 sm32 10-16 32-3 67,7 25,9 122,0 85,0 50,0 25,0 4 M12 602,0 1
21642 sm40 10-16 40-3,5 77,0 27,0 142,0 100,0 60,0 32,0 4 M16 689,9 1
D D1 Di De
21644 sm50 10-16 50-4 88,0 28,0 156,0 110,0 73,2 40,0 4 M16 920,3 1
sf
21646 sm63 10-16 63-4,5 109,6 32,6 171,0 125,0 95,0 53,0 4 M16 1363,7 1
* Fori Holes

COLLETTORE COMPONIBILE per posa libera e sottomuratura
MODULAR MANIFOLD free-laying and walled-in
Art. Peso

Item M T R L L1 H De De1 Di Di1 Weight
sm mm mm (Df) mm mm mm mm mm mm mm g pz pz
L pcs pcs
L1
21300 sf20-sm14-sm20 20-2 14-2 20 81,7 35,0 44,5 32,6 25,5 14,0 8,0 41,4 10 150
Di De 21302 sf20-sm16-sm20 20-2 16-2 20 81,7 35,0 47,4 32,6 27,5 14,0 9,5 43,9 10 150
21303 sf26-sm14-sm26 26-3 14-2 26 96,6 40,5 49,5 41,2 25,5 18,0 8,0 61,0 5 100
H
R 21304 sf26-sm16-sm26 26-3 16-2 26 96,6 40,5 52,4 41,2 27,5 18,0 9,5 63,4 5 80
21305 sf26-sm18-sm26 26-3 18-2 26 96,6 40,5 54,0 41,2 30,0 18,0 11,5 66,3 5 80
Di1
De1 21307 sf26-sm20-sm26 26-3 20-2 26 96,6 40,5 54,2 41,2 32,6 18,0 14,0 67,4 5 80
T

COLLETTORE MULTIRAPID per distribuzione acqua sanitaria, con vitone in lega
M MULTIRAPID MANIFOLD for sanitary water conveyance, with shut-off valve
Art. Peso
Item M T R L L1 H H1 De De1 Weight
mm mm (Df) mm mm mm mm mm mm g pz pz
pcs pcs
L 21312 sf20-sm16-sm20 20-2 16-2 20 81,7 35,0 100,8 47,4 32,6 27,5 105,1 10 100
L1
21316 sf26-sm16-sm26 26-3 16-2 26 96,6 40,5 105,8 52,4 41,2 27,5 125,6 5 80
21322 sf32-sm16-sm32 32-3 16-2 32 103,8 43,0 113,7 55,4 50,0 27,5 166,4 5 40
21326 sf32-sm20-sm32 32-3 20-2 32 103,8 43,0 112,3 55,4 50,0 32,6 173,0 5 40
H De
H1

De1
