P. 199

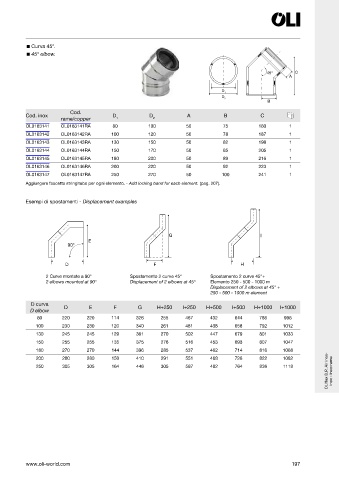

Curva 45°.
45° elbow.
45° C
A
D
1
D 2
B
Cod.
Cod. inox D D A B C
rame/copper 1 2
OL0163141 OL0163141RA 80 100 50 75 180 1
OL0163142 OL0163142RA 100 120 50 78 187 1
OL0163143 OL0163143RA 130 150 50 82 198 1
OL0163144 OL0163144RA 150 170 50 85 205 1
OL0163145 OL0163145RA 180 200 50 89 216 1
OL0163146 OL0163146RA 200 220 50 92 223 1
OL0163147 OL0163147RA 250 270 50 100 241 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).
Esempi di spostamenti - Displacement examples
G I
E
90°
D F H
2 Curve montate a 90° Spostamento 2 curve 45° Spostamento 2 curve 45°+
2 elbows mounted at 90° Displacement of 2 elbows at 45° Elemento 250 - 500 - 1000 m
Displacement of 2 elbows at 45° +
250 - 500 - 1000 m element
D curva
D elbow D E F G H+250 I+250 H+500 I+500 H+1000 I+1000
80 220 220 114 326 255 467 432 644 786 998
100 230 230 120 340 261 481 438 658 792 1012
130 245 245 129 361 270 502 447 679 801 1033
150 255 255 135 375 276 516 453 693 807 1047
180 270 270 144 396 285 537 462 714 816 1068
OLI ex D.P. Air inox- inox - inox-rame
200 280 280 150 410 291 551 468 728 822 1082
250 305 305 164 446 305 587 482 764 836 1118
