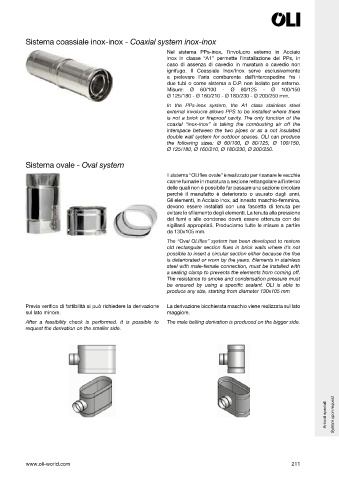

Sistema coassiale inox-inox - Coaxial system inox-inox
Nel sistema PPs-inox, l’involucro esterno in Acciaio
Inox in classe “A1” permette l’installazione del PPs, in
caso di assenza di cavedio in muratura o cavedio non
ignifugo. Il Coassiale Inox/Inox serve esclusivamente
a prelevare l’aria comburente dall’intercapedine fra i
due tubi o come sistema a D.P. non isolato per esterno.
Misure: Ø 60/100 - Ø 80/125 - Ø 100/150
Ø 125/180 - Ø 160/210 - Ø 180/230 - Ø 200/250 mm.
In the PPs-inox system, the A1 class stainless steel
external involucre allows PPS to be installed where there
is not a brick or fireproof cavity. The only function of the
coaxial “inox-inox” is taking the combusting air off the
interspace between the two pipes or as a not insulated
double wall system for outdoor spaces. OLI can produce
the following sizes: Ø 60/100, Ø 80/125, Ø 100/150,
Ø 125/180, Ø 160/210, Ø 180/230, Ø 200/250.
Sistema ovale - Oval system
Il sistema “OLI ex ovale” è realizzato per risanare le vecchie
canne fumarie in muratura a sezione rettangolare all’interno
delle quali non è possibile far passare una sezione circolare
perché il manufatto è deteriorato o usurato dagli anni.
Gli elementi, in Acciaio Inox, ad innesto maschio-femmina,
devono essere installati con una fascetta di tenuta per
evitare lo s lamento degli elementi. La tenuta alla pressione
dei fumi e alle condense dovrà essere ottenuta con dei
sigillanti appropriati. Produciamo tutte le misure a partire
da 130x105 mm.
The “Oval OLIflex” system has been developed to restore
old rectangular section flues in brick walls where it’s not
possible to insert a circular section either because the flue
is deteriorated or worn by the years. Elements in stainless
steel with male-female connection, must be installed with
a sealing clamp to prevents the elements from coming off.
The resistance to smoke and condensation pressure must
be ensured by using a specific sealant. OLI is able to
produce any size, starting from diameter 130x105 mm
Previa veri ca di fattibilità si può richiedere la derivazione La derivazione bicchierata maschio viene realizzata sul lato
sul lato minore. maggiore.
After a feasibility check is performed. it is possible to The male belling derivation is produced on the bigger side.
request the derivation on the smaller side.
Articoli speciali System upon request
