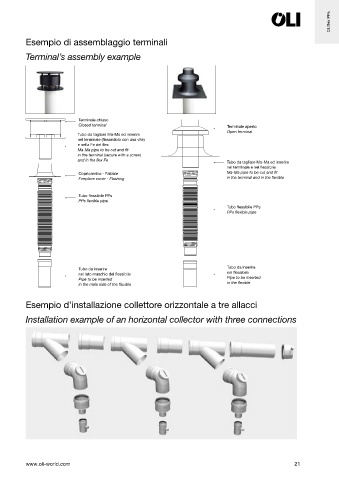

Esempio di assemblaggio terminali
Terminal’s assembly example
Terminale chiuso
Closed terminal Terminale aperto
Open terminal
Tubo da tagliare Ma-Ma ed inserire
nel terminale ( ssandolo con una vite)
e nella Fe del ex
Ma-Ma pipe to be cut and fit
in the terminal (secure with a screw)
and in the flex Fe
Tubo da tagliare Ma-Ma ed inserire
nel terminale e nel essibile
Copricamino - Faldale Ma-Ma pipe to be cut and fit
Fireplace cover - Flashing in the terminal and in the flexible
Tubo essibile PPs
PPs flexible pipe
Tubo essibile PPs
PPs flexible pipe
Tubo da inserire Tubo da inserire
nel lato maschio del essibile nel essibile
Pipe to be inserted Pipe to be inserted
in the male side of the flexible in the flexible
Esempio d’installazione collettore orizzontale a tre allacci
Installation example of an horizontal collector with three connections
