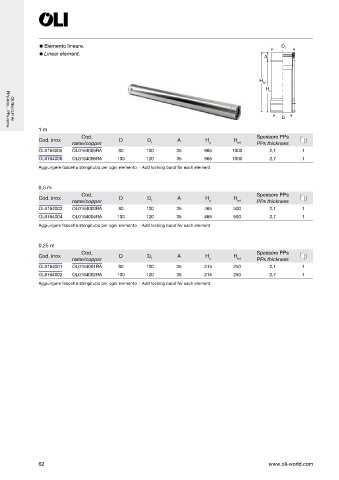

Elemento lineare. D 1
Linear element.
A
H tot
H
u
D
OLI ex D.P. Air
1 m
PPs-inox, - PPs-rame
Cod. Spessore PPs
Cod. inox D D A H H
rame/copper 1 u tot PPs thickness
OL0164005 OL0164005RA 80 100 35 965 1000 2,1 1
OL0164006 OL0164006RA 100 120 35 965 1000 2,7 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element.
0,5 m
Cod. Spessore PPs
Cod. inox D D A H H
rame/copper 1 u tot PPs thickness
OL0164003 OL0164003RA 80 100 35 465 500 2,1 1
OL0164004 OL0164004RA 100 120 35 465 500 2,7 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element.
0,25 m
Cod. Spessore PPs
Cod. inox D D A H H
rame/copper 1 u tot PPs thickness
OL0164001 OL0164001RA 80 100 35 215 250 2,1 1
OL0164002 OL0164002RA 100 120 35 215 250 2,7 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element.
