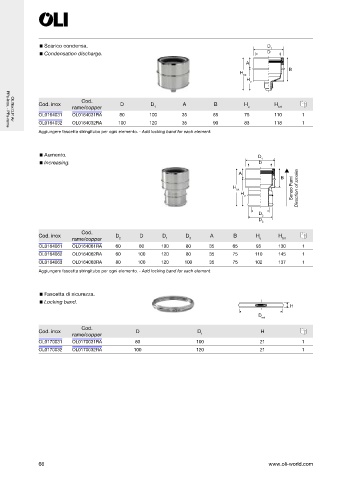

Page 68 - OLI - OLIFLEX
P. 68
Scarico condensa. D 1
Condensation discharge. D
A
B
H
tot
H
u
Cod.
Cod. inox D D A B H H
rame/copper 1 u tot
OL0164031 OL0164031RA 80 100 35 85 75 110 1
OL0164032 OL0164032RA 100 120 35 90 83 118 1
OLI ex D.P. Air
PPs-inox, - PPs-rame
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element.
Aumento. D 1
Increasing. D
A
B
H
tot Senso Fumi Direction of smoke
H u
D 2
D
3
Cod.
Cod. inox D D D D A B H H
rame/copper 2 1 3 u tot
OL0164061 OL0164061RA 60 80 100 80 35 65 95 130 1
OL0164062 OL0164062RA 60 100 120 80 35 75 110 145 1
OL0164063 OL0164063RA 80 100 120 100 35 75 102 137 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element.
Fascetta di sicurezza.
Locking band.
H
D est
Cod.
Cod. inox D D H
rame/copper 1
OL0170031 OL0170031RA 80 100 21 1
OL0170032 OL0170032RA 100 120 21 1
66 www.oli-world.com
