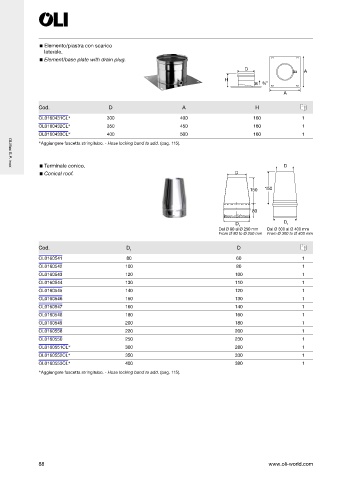

P. 90
Elemento/piastra con scarico
laterale.
Element/base plate with drain plug.
D A
H
¾”
A
Cod. D A H
OL0160431CL 300 400 160 1
OL0160432CL 350 450 160 1
OL0160433CL 400 500 160 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 115).
Terminale conico. D
OLI ex S.P. inox
Conical roof. D
150 150
80
D 1 D 1
Dal Ø 80 al Ø 250 mm Dal Ø 300 al Ø 400 mm
From Ø 80 to Ø 250 mm From Ø 300 to Ø 400 mm
Cod. D D
1
OL0160541 80 60 1
OL0160542 100 80 1
OL0160543 120 100 1
OL0160544 130 110 1
OL0160545 140 120 1
OL0160546 150 130 1
OL0160547 160 140 1
OL0160548 180 160 1
OL0160549 200 180 1
OL0160558 220 200 1
OL0160550 250 230 1
OL0160551CL 300 280 1
OL0160552CL 350 330 1
OL0160553CL 400 380 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 115).
