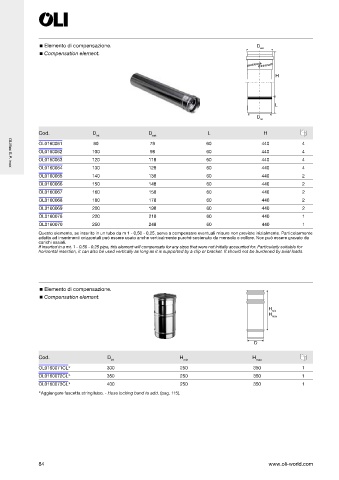

P. 86
Elemento di compensazione. D
est
Compensation element.
H
L
D int
Cod. D D L H
int est
OL0160061 80 78 60 440 4
OL0160062 100 98 60 440 4
OL0160063 120 118 60 440 4
OL0160064 130 128 60 440 4
OLI ex S.P. inox
OL0160065 140 138 60 440 2
OL0160066 150 148 60 440 2
OL0160067 160 158 60 440 2
OL0160068 180 178 60 440 2
OL0160069 200 198 60 440 2
OL0160078 220 218 60 440 1
OL0160070 250 248 60 440 1
Questo elemento, se inserito in un tubo da m 1 - 0,50 - 0,25, serve a compensare eventuali misure non previste inizialmente. Particolarmente
adatto ad inserimenti orizzontali può essere usato anche verticalmente purché sostenuto da mensola o collare. Non può essere gravato da
carichi assiali.
If inserted in a mt. 1 - 0.50 - 0.25 pipe, this element will compensate for any sizes that were not initially accounted for. Particularly suitable for
horizontal insertion, it can also be used vertically as long as it is supported by a clip or bracket. It should not be burdened by axial loads.
Elemento di compensazione.
Compensation element.
H min
H max
D
Cod. D H H
int min max
OL0160071CL 300 250 350 1
OL0160072CL 350 250 350 1
OL0160073CL 400 250 350 1
Aggiungere fascetta stringitubo. - Hose locking band to add. (pag. 115).
