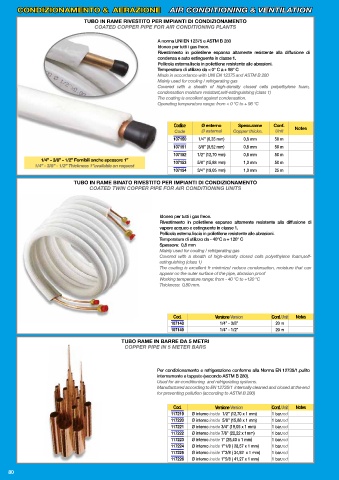

Page 82 - FERRARI - CONDIZIONAMENTO

CONDIZIONAMENTO & AERAZIONE AIR CONDITIONING & VENTILATION

TUBO IN RAME RIVESTITO PER IMPIANTI DI CONDIZIONAMENTO
COATED COPPER PIPE FOR AIR CONDITIONING PLANTS

A norma UNI EN 12375 e ASTM B 280
Idoneo per tutti i gas freon.
Rivestimento in polietilene espanso altamente resistente alla diffusione di
condensa e auto estinguente in classe 1.
Pellicola esterna liscia in polietilene resistente alle abrasioni.
Temperatura di utilizzo da < 0° C a + 98° C
Made in accordance with UNI EN 12375 and ASTM B 280
Mainly used for cooling / refrigerating gas
Mainly used for cooling / refrigerating gas
Covered with a sheath of high-density closed cells polyethylene foam,
Covered with a sheath of high-density closed cells polyethylene foam,
Covered with a sheath of high-density closed cells polyethylene foam,
condensation moisture resistant,self-estinguishing (class 1)
condensation moisture resistant,self-estinguishing (class 1)
condensation moisture resistant,self-estinguishing (class 1)
The coating is excellent against condensation.
The coating is excellent against condensation.
The coating is excellent against condensation.
Operating temperature range: from < 0 °C to + 98 °C
Operating temperature range: from < 0 °C to + 98 °C
Operating temperature range: from < 0 °C to + 98 °C
Codice Ø esterno Spess.rame Conf.
Code Ø esternal Copper thickn. Unit Notes
107150 1/4” (6,35 mm) 0,8 mm 50 m
107151 3/8” (9,52 mm) 0,8 mm 50 m
107152 1/2” (12,70 mm) 0,8 mm 50 m
1/4” - 3/8” - 1/2” Fornibili anche spessore 1” 107153 5/8” (15,88 mm) 1,0 mm 50 m
1/4” - 3/8” - 1/2” Thickness 1”available on request
107154 3/4” (19,05 mm) 1,0 mm 25 m
TUBO IN RAME BINATO RIVESTITO PER IMPIANTI DI CONDIZIONAMENTO
COATED TWIN COPPER PIPE FOR AIR CONDITIONING UNITS

Idoneo per tutti i gas freon.
Rivestimento in polietilene espanso altamente resistente alla diffusione di
vapore acqueo e estinguente in classe 1.
Pellicola esterna liscia in polietilene resistente alle abrasioni.
Temperatura di utilizzo da - 40°C a + 120° C
Spessore: 0,8 mm
Mainly used for cooling / refrigerating gas
Covered with a sheath of high-density closed cells polyethylene foam,self-
estinguishing (class 1)
The coating is excellent fr minimize/ reduce condensation, moisture that can
appear on the outer surface of the pipe, abrasion proof
Working temperature range: from - 40 °C to +120 °C
Thickness: 0,80 mm.

Cod. Versione Version Conf. Unit Notes
107148 1/4” - 3/8” 20 m
107149 1/4” - 1/2” 20 m
TUBO RAME IN BARRE DA 5 METRI
COPPER PIPE IN 5 METER BARS

Per condizionamento e refrigerazione conforme alla Norma EN 12735/1,pulito
internamente e tappato (secondo ASTM B 280).
Used for air-conditioning and refrigerating systems.
Manufactured according to EN 12735/1 internally cleaned and closed at the end
for preventing pollution (according to ASTM B 280)

Cod. Versione Version Conf. Unit Notes
117219 Ø interno inside 1/2” (12,70 x 1 mm) 1 bar.rod
117220 Ø interno inside 5/8” (15,88 x 1 mm) 1 bar.rod
117221 Ø interno inside 3/4” (19,05 x 1 mm) 1 bar.rod
117222 Ø interno inside 7/8” (22,22 x 1mm) 1 bar.rod
117223 Ø interno inside 1” (25,40 x 1 mm) 1 bar.rod
117224 Ø interno inside 1”1/8 ( 28,57 x 1 mm) 1 bar.rod
117225 Ø interno inside 1”3/8 ( 34,92 x 1 mm) 1 bar.rod
117226 Ø interno inside 1”5/8 ( 41,27 x 1 mm) 1 bar.rod
