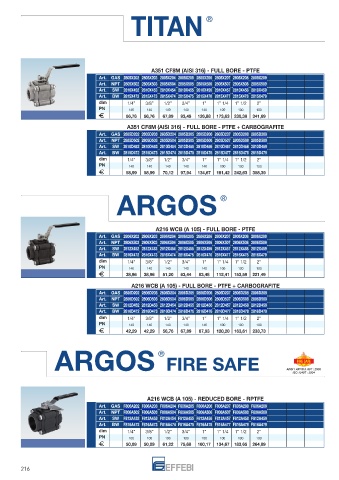

Page 216 - EFFEBI - LISTINO 09

TITAN ®

A351 CF8M (AISI 316) - FULL BORE - PTFE
Art. GAS 2805X202 2805X203 2805X204 2805X205 2805X206 2805X207 2805X208 2805X209
Art. NPT 2805X502 2805X503 2805X504 2805X505 2805X506 2805X507 2805X508 2805X509
Art. SW 2810X452 2810X453 2810X454 2810X455 2810X456 2810X457 2810X458 2810X459
Art. BW 2815X472 2815X473 2815X474 2815X475 2815X476 2815X477 2815X478 2815X479
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 140 140 140 140 140 100 100 100
56,76 56,76 67,89 93,49 126,88 173,63 230,39 341,69
A351 CF8M (AISI 316) - FULL BORE - PTFE + CARBOGRAFITE
Art. GAS 2805D202 2805D203 2805D204 2805D205 2805D206 2805D207 2805D208 2805D209
Art. NPT 2805D502 2805D503 2805D504 2805D505 2805D506 2805D507 2805D508 2805D509
Art. SW 2810D452 2810D453 2810D454 2810D455 2810D456 2810D457 2810D458 2810D459
Art. BW 2815D472 2815D473 2815D474 2815D475 2815D476 2815D477 2815D478 2815D479
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 140 140 140 140 140 100 100 100
58,99 58,99 70,12 97,94 134,67 181,42 242,63 358,39

ARGOS ®

A216 WCB (A 105) - FULL BORE - PTFE
Art. GAS 2806X202 2806X203 2806X204 2806X205 2806X206 2806X207 2806X208 2806X209
Art. NPT 2806X502 2806X503 2806X504 2806X505 2806X506 2806X507 2806X508 2806X509
Art. SW 2812X452 2812X453 2812X454 2812X455 2812X456 2812X457 2812X458 2812X459
Art. BW 2816X472 2816X473 2816X474 2816X475 2816X476 2816X477 2816X478 2816X479
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 140 140 140 140 140 100 100 100
38,96 38,96 51,20 63,44 83,48 112,41 153,59 221,49
A216 WCB (A 105) - FULL BORE - PTFE + CARBOGRAFITE
Art. GAS 2806D202 2806D203 2806D204 2806D205 2806D206 2806D207 2806D208 2806D209
Art. NPT 2806D502 2806D503 2806D504 2806D505 2806D506 2806D507 2806D508 2806D509
Art. SW 2812D452 2812D453 2812D454 2812D455 2812D456 2812D457 2812D458 2812D459
Art. BW 2816D472 2816D473 2816D474 2816D475 2816D476 2816D477 2816D478 2816D479
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 140 140 140 140 140 100 100 100
42,29 42,29 56,76 67,89 87,93 120,20 163,61 233,73

®
ARGOS FIRE SAFE FIRE SAFE

ANSI / API Std. 607 : 2005
ISO 10497 : 2004

A216 WCB (A 105) - REDUCED BORE - RPTFE
Art. GAS F806A202 F806A203 F806A204 F806A205 F806A206 F806A207 F806A208 F806A209
Art. NPT F806A502 F806A503 F806A504 F806A505 F806A506 F806A507 F806A508 F806A509
Art. SW F812A452 F812A453 F812A454 F812A455 F812A456 F812A457 F812A458 F812A459
Art. BW F816A472 F816A473 F816A474 F816A475 F816A476 F816A477 F816A478 F816A479
dim 1/4” 3/8” 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
PN 100 100 100 100 100 100 100 100
50,09 50,09 61,22 75,68 100,17 134,67 183,65 264,89

216
