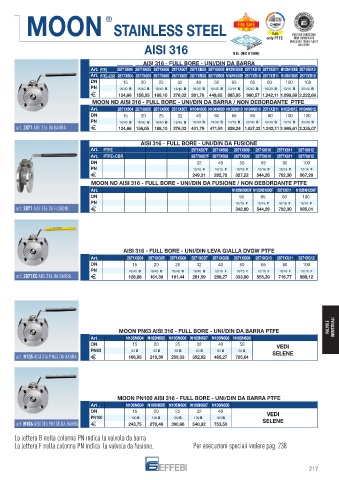

Page 217 - EFFEBI - LISTINO 09

® FIRE SAFE FUGITIVE EMISSION TEST
ISO 15848-1:2017
MOON STAINLESS STEEL

only PTFE FUGITIVE EMISSIONS
TEST CERTIFICATE
UNI EN ISO 15848-1:2017
AISI 316 SIL (IEC 61508) ONLY PTFE
AISI 316 - FULL BORE - UNI/DIN DA BARRA
Art. PTFE 2871X604 2871X605 2871X606 2871X607 2871XB08 2871XB09 M102N61000B 2871XB10 2871XB11 M102N61200B 2871XB12
Art. PTFE+CBR 2877X604 2877X605 2877X606 2877X607 2877XB08 2877XB09 M142N61000B 2877XB10 2877XB11 M142N61200B 2877XB12
DN 15 20 25 32 40 50 65 65 80 100 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 25/40 B 16/40 B 10/16 B 25/40 B

124,66 158,05 188,10 276,02 381,76 449,65 885,95 990,57 1.242,11 1.899,89 2.222,66
MOON ND AISI 316 - FULL BORE - UNI/DIN DA BARRA / NON DEBORDANTE PTFE
Art. 2871X604 2871X605 2871X606 2871X607 N104N608 N104N609 N102N610 N104N610 2871XB11 N102N612 N104N612
DN 15 20 25 32 40 50 65 65 80 100 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 25/40 B 16/40 B 10/16 B 25/40 B

art. 2871 AISI 316 DA BARRA 124,66 158,05 188,10 276,02 401,79 471,91 928,24 1.037,32 1.242,11 1.995,61 2.335,07

AISI 316 - FULL BORE - UNI/DIN DA FUSIONE
Art. PTFE 2871X607F 2871X608 2871X609 2871X610 2871X611 2871X612
Art. PTFE+CBR 2877X607F 2877X608 2877X609 2877X610 2877X611 2877X612
DN 32 40 50 65 80 100
PN 10/16 F 10/16 F 10/16 F 10/16 F 10/16 F 10/16 F
249,31 282,70 327,22 544,26 702,30 967,20
MOON ND AISI 316 - FULL BORE - UNI/DIN DA FUSIONE / NON DEBORDANTE PTFE
Art. N102N60900F N102N61000F 2871X611 N102N61200F
DN 50 65 80 100
PN 10/16 F 10/16 F 10/16 F 10/16 F
art. 2871 AISI 316 DA FUSIONE 342,80 544,26 702,30 985,01

AISI 316 - FULL BORE - UNI/DIN LEVA GIALLA DVGW PTFE
Art. 2871XG04 2871XG05 2871XG06 2871XG07 2871XG08 2871XG09 2871XG10 2871XG11 2871XG12
DN 15 20 25 32 40 50 65 80 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 10/16 F 10/16 F 10/16 F 10/16 F 10/16 F
art. 2871XG AISI 316 DA BARRA 126,88 161,39 191,44 281,59 288,27 333,90 555,39 716,77 986,12

VALVOLE INDUSTRIALI
MOON PN63 AISI 316 - FULL BORE - UNI/DIN DA BARRA PTFE
Art . N105N604 N105N605 N105N606 N105N607 N105N608 N105N609
DN 15 20 25 32 40 50 VEDI
PN63 63 B 63 B 63 B 63 B 63 B 63 B SELENE
art. N105 AISI 316 PN63 DA BARRA 166,95 210,36 259,33 352,82 485,27 705,64

MOON PN100 AISI 316 - FULL BORE - UNI/DIN DA BARRA PTFE
Art . N106N604 N106N605 N106N606 N106N607 N106N608
DN 15 20 25 32 40 VEDI
PN100 100 B 100 B 100 B 100 B 100 B
art. N106 AISI 316 PN100 DA BARRA 243,75 270,46 390,66 540,92 753,50 SELENE

La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione. Per esecuzioni speciali vedere pag. 238
