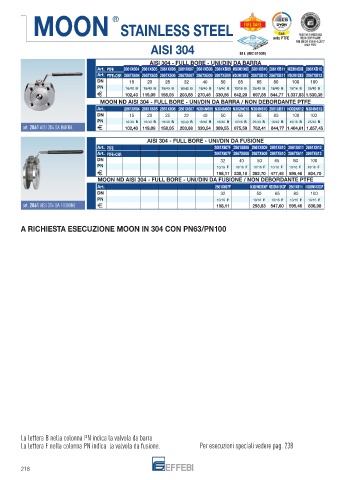

Page 218 - EFFEBI - LISTINO 09

® FIRE SAFE FUGITIVE EMISSION TEST
ISO 15848-1:2017
MOON STAINLESS STEEL

only PTFE FUGITIVE EMISSIONS
TEST CERTIFICATE
UNI EN ISO 15848-1:2017
AISI 304 SIL (IEC 61508) ONLY PTFE
AISI 304 - FULL BORE - UNI/DIN DA BARRA
Art. PTFE 2861X604 2861X605 2861X606 2861X607 2861XB08 2861XB09 M302N61000B 2861XB10 2861XB11 M302N61200B 2861XB12
Art. PTFE+CBR 2867X604 2867X605 2867X606 2867X607 2867XB08 2867XB09 M342N61000B 2867XB10 2867XB11 M342N61200B 2867XB12
DN 15 20 25 32 40 50 65 65 80 100 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 25/40 B 16/40 B 10/16 B 25/40 B

102,40 119,09 158,05 203,68 270,46 330,56 642,20 697,85 844,77 1.337,83 1.530,38
MOON ND AISI 304 - FULL BORE - UNI/DIN DA BARRA / NON DEBORDANTE PTFE
Art. 2861X604 2861X605 2861X606 2861X607 N304N608 N304N609 N302N610 N304N610 2861XB11 N302N612 N304N612
DN 15 20 25 32 40 50 65 65 80 100 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 25/40 B 16/40 B 10/16 B 25/40 B

art. 2861 AISI 304 DA BARRA 102,40 119,09 158,05 203,68 320,54 389,55 675,59 762,41 844,77 1.404,61 1.857,45
AISI 304 - FULL BORE - UNI/DIN DA FUSIONE
Art. PTFE 2861X607F 2861X608 2861X609 2861X610 2861X611 2861X612
Art. PTFE+CBR 2867X607F 2867X608 2867X609 2867X610 2867X611 2867X612
DN 32 40 50 65 80 100
PN 10/16 F 10/16 F 10/16 F 10/16 F 10/16 F 10/16 F

198,11 238,18 282,70 477,48 595,46 804,70
MOON ND AISI 304 - FULL BORE - UNI/DIN DA FUSIONE / NON DEBORDANTE PTFE
Art. 2861X607F N302N60900F N302N61000F 2861X611 N302N61200F
DN 32 50 65 80 100
PN 10/16 F 10/16 F 10/16 F 10/16 F 10/16 F

art. 2861 AISI 304 DA FUSIONE 198,11 293,83 547,60 595,46 836,98

A RICHIESTA ESECUZIONE MOON IN 304 CON PN63/PN100

La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione. Per esecuzioni speciali vedere pag. 238

218
