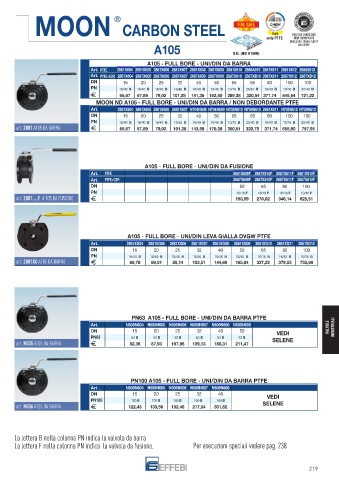

Page 219 - EFFEBI - LISTINO 09

® FIRE SAFE FUGITIVE EMISSION TEST
ISO 15848-1:2017
MOON CARBON STEEL

only PTFE FUGITIVE EMISSIONS
TEST CERTIFICATE
UNI EN ISO 15848-1:2017
A105 SIL (IEC 61508) ONLY PTFE
A105 - FULL BORE - UNI/DIN DA BARRA
Art. PTFE 2881X604 2881X605 2881X606 2881X607 2881X608 2881X609 2881X610 2886X610 2881X611 2881X612 2886X612
Art. PTFE+CBR 2887X604 2887X605 2887X606 2887X607 2887X608 2887X609 2887X610 2887XB10 2887X611 2887X612 2887XB12
DN 15 20 25 32 40 50 65 65 80 100 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 25/40 B 16/40 B 10/16 B 25/40 B

65,67 67,89 79,02 101,28 141,35 162,50 289,38 320,54 371,74 645,54 721,22
MOON ND A105 - FULL BORE - UNI/DIN DA BARRA / NON DEBORDANTE PTFE
Art. 2881X604 2881X605 2881X606 2881X607 N704N608 N704N609 N702N610 N704N610 2881X611 N702N612 N704N612
DN 15 20 25 32 40 50 65 65 80 100 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 25/40 B 16/40 B 10/16 B 25/40 B

art. 2881 A105 DA BARRA 65,67 67,89 79,02 101,28 143,58 178,08 300,51 332,79 371,74 658,90 757,95

A105 - FULL BORE - UNI/DIN DA FUSIONE
Art. PTFE 2881X609F 2881X610F 2881X611F 2881X612F
Art. PTFE+CBR 2887X609F 2887X610F 2887X611F 2887X612F
DN 50 65 80 100
PN 10/16 F 10/16 F 10/16 F 10/16 F

art. 2881....F A 105 DA FUSIONE 153,59 276,02 346,14 625,51

A105 - FULL BORE - UNI/DIN LEVA GIALLA DVGW PTFE
Art. 2881XG04 2881XG05 2881XG06 2881XG07 2881XG08 2881XG09 2881XG10 2881XG11 2881XG12
DN 15 20 25 32 40 50 65 80 100
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 10/16 B 16/40 B 10/16
B
B
art. 2881XG A105 DA BARRA 66,78 69,01 80,14 103,51 144,69 165,84 327,22 379,53 735,69

PN63 A105 - FULL BORE - UNI/DIN DA BARRA PTFE
Art. N505N604 N505N605 N505N606 N505N607 N505N608 N505N609 VALVOLE INDUSTRIALI
DN 15 20 25 32 40 50 VEDI
PN63 63 B 63 B 63 B 63 B 63 B 63 B SELENE
art. N505 A105 DA BARRA 82,36 87,93 107,96 139,13 180,31 211,47

PN100 A105 - FULL BORE - UNI/DIN DA BARRA PTFE
Art . N506N604 N506N605 N506N606 N506N607 N506N608
DN 15 20 25 32 40 VEDI
PN100 100 B 100 B 100 B 100 B 100 B
art. N506 A105 DA BARRA 122,43 133,56 152,48 217,04 301,62 SELENE

La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione. Per esecuzioni speciali vedere pag. 238
