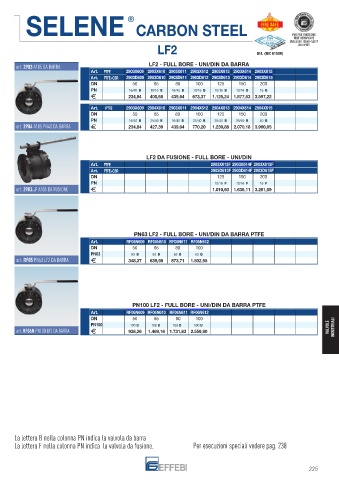

Page 225 - EFFEBI - LISTINO 09

® FIRE SAFE FUGITIVE EMISSION TEST
ISO 15848-1:2017
SELENE CARBON STEEL
FUGITIVE EMISSIONS
TEST CERTIFICATE
UNI EN ISO 15848-1:2017
LF2 SIL (IEC 61508) ONLY PTFE

art. 2903 A105 DA BARRA LF2 - FULL BORE - UNI/DIN DA BARRA
Art. PTFE 2903X609 2903X610 2903X611 2903X612 2903X613 2903X614 2903X615
Art. PTFE+CBR 2903D609 2903D610 2903D611 2903D612 2903D613 2903D614 2903D615
DN 50 65 80 100 125 150 200
PN 16/40 B 10/16 B 16/40 B 10/16 B 10/16 B 10/16 B 16 B
234,84 400,68 439,64 673,37 1.125,24 1.877,63 3.597,22

Art. PTFE 2903X609 2904X610 2903X611 2904X612 2904X613 2904X614 2904X615
DN 50 65 80 100 125 150 200
PN 16/40 B 25/40 B 16/40 B 25/40 B 25/40 B 25/40 B 40 B
art. 2904 A105 PN40 DA BARRA 234,84 427,39 439,64 770,20 1.239,88 2.070,18 3.960,05

LF2 DA FUSIONE - FULL BORE - UNI/DIN
Art. PTFE 2903X613F 2903X614F 2903X615F
Art. PTFE+CBR 2903D613F 2903D614F 2903D615F
DN 125 150 200
PN 10/16 F 10/16 F 16 F
art. 2903..F A105 DA FUSIONE 1.010,60 1.636,11 3.261,09

PN63 LF2 - FULL BORE - UNI/DIN DA BARRA PTFE
Art. RF05N609 RF05N610 RF05N611 RF05N612
DN 50 65 80 100
PN63 63 B 63 B 63 B 63 B
art. RF05 PN63 LF2 DA BARRA 348,37 639,98 873,71 1.502,55

PN100 LF2 - FULL BORE - UNI/DIN DA BARRA PTFE
Art. RF06N609 RF06N610 RF06N611 RF06N612
DN 50 65 80 100
PN100 100 B 100 B 100 B 100 B
art. RF06N PN100 LF2 DA BARRA 938,26 1.469,16 1.731,83 2.559,90 VALVOLE INDUSTRIALI

La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione. Per esecuzioni speciali vedere pag. 238

225
