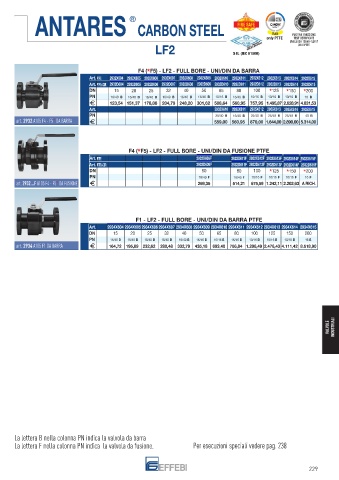

Page 229 - EFFEBI - LISTINO 09

® FIRE SAFE FUGITIVE EMISSION TEST
ISO 15848-1:2017
ANTARES CARBON STEEL

only PTFE FUGITIVE EMISSIONS
TEST CERTIFICATE
UNI EN ISO 15848-1:2017
LF2 SIL (IEC 61508) ONLY PTFE

*
F4 ( F5) - LF2 - FULL BORE - UNI/DIN DA BARRA
Art. PTFE 2932X604 2932X605 2932X606 2932X607 2932X608 2932X609 2932X610 2932X611 2932X612 2932X613 2932X614 2932X615
Art. PTFE+CBR 2932D604 2932D605 2932D606 2932D607 2932D608 2932D609 2932D610 2932D611 2932D612 2932D613 2932D614 2932D615
DN 15 20 25 32 40 50 65 80 100 * 125 * 150 * 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 16/40 B 10/16 B 10/16 B 10/16 B 16 B
123,54 151,37 178,08 204,79 248,20 301,62 508,64 560,95 757,95 1.495,87 2.628,91 4.831,53
Art. 2935X610 2932X611 2935X612 2935X613 2935X614 2935X615
PN 25/40 B 16/40 B 25/40 B 25/40 B 25/40 B 40 B
art. 2932 A105 F4 - F5* DA BARRA 559,00 560,95 870,00 1.644,00 2.890,00 5.314,00

*
F4 ( F5) - LF2 - FULL BORE - UNI/DIN DA FUSIONE PTFE
Art. PTFE 2932X609F 2932X611F 2932X612F 2932X613F 2932X614F 2932X615F
Art. PTFE+CBR 2932D609F 2932D611F 2932D612F 2932D613F 2932D614F 2932D615F
DN 50 80 100 * 125 * 150 * 200

PN 16/40 F 16/40 10/16 F 10/16 F 10/16 F 16 F

F
art. 2932...F A105 F4 - F5* DA FUSIONE 269,35 514,21 675,59 1.242,11 2.202,63 A RICH.

F1 - LF2 - FULL BORE - UNI/DIN DA BARRA PTFE
Art. 2934X604 2934X6052934X606 2934X607 2934X608 2934X609 2934X610 2934X611 2934X612 2934X613 2934X614 2934X615
DN 15 20 25 32 40 50 65 80 100 125 150 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 16/40 B 10/16 B 10/16 B 10/16 B 16 B
art. 2934 A105 F1 DA BARRA 164,72 195,89 232,62 280,48 332,79 435,18 693,40 756,84 1.206,49 2.476,43 4.111,42 8.518,90

VALVOLE INDUSTRIALI

La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione. Per esecuzioni speciali vedere pag. 238
