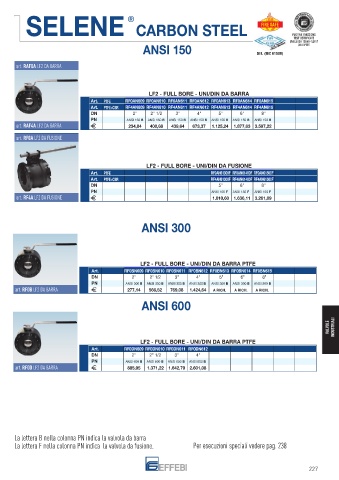

Page 227 - EFFEBI - LISTINO 09

® FIRE SAFE FUGITIVE EMISSION TEST
ISO 15848-1:2017
SELENE CARBON STEEL
FUGITIVE EMISSIONS
TEST CERTIFICATE
UNI EN ISO 15848-1:2017
ANSI 150 SIL (IEC 61508) ONLY PTFE

art. RAF0A LF2 DA BARRA

LF2 - FULL BORE - UNI/DIN DA BARRA
Art. PTFE RF0AN609 RF0AN610 RF0AN611 RF0AN612 RF0AN613 RF0AN614 RF0AN615
Art. PTFE+CBR RF4AN609 RF4AN610 RF4AN611 RF4AN612 RF4AN613 RF4AN614 RF4AN615
DN 2" 2" 1/2 3" 4" 5" 6" 8"
PN ANSI 150 B ANSI 150 B ANSI 150 B ANSI 150 B ANSI 150 B ANSI 150 B ANSI 150 B
art. RAF4A LF2 DA BARRA 234,84 400,68 439,64 673,37 1.125,24 1.877,63 3.597,22

art. RF0A LF2 DA FUSIONE

LF2 - FULL BORE - UNI/DIN DA FUSIONE
Art. PTFE RF0AN61300F RF0AN61400F RF0AN61500F
Art. PTFE+CBR RF4AN61300F RF4AN61400F RF4AN61500F
DN 5" 6" 8"
PN ANSI 150 F ANSI 150 F ANSI 150 F
art. RF4A LF2 DA FUSIONE 1.010,60 1.636,11 3.261,09

ANSI 300

LF2 - FULL BORE - UNI/DIN DA BARRA PTFE
Art. RF0BN609 RF0BN610 RF0BN611 RF0BN612 RF0BN613 RF0BN614 RF0BN615
DN 2" 2" 1/2 3" 4" 5" 6" 8"

PN ANSI 300 ANSI 300 B ANSI 300 B ANSI 300 B ANSI 300 B ANSI 300 B ANSI 300 B
B
art. RF0B LF2 DA BARRA 277,14 566,52 769,08 1.424,64 A RICH. A RICH. A RICH.
ANSI 600

VALVOLE INDUSTRIALI

LF2 - FULL BORE - UNI/DIN DA BARRA PTFE
Art. RF0DN609 RF0DN610 RF0DN611 RF0DN612
DN 2" 2" 1/2 3" 4"
PN ANSI 600 B ANSI 600 B ANSI 600 B ANSI 600 B
art. RF0D LF2 DA BARRA 885,95 1.371,22 1.642,79 2.601,08

La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione. Per esecuzioni speciali vedere pag. 238
