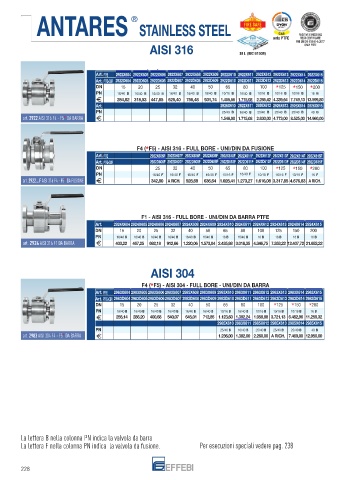

Page 228 - EFFEBI - LISTINO 09

® FIRE SAFE FUGITIVE EMISSION TEST
ISO 15848-1:2017
ANTARES STAINLESS STEEL

only PTFE FUGITIVE EMISSIONS
TEST CERTIFICATE
UNI EN ISO 15848-1:2017
AISI 316 SIL (IEC 61508) ONLY PTFE

F4 ( F5) - AISI 316 - FULL BORE - UNI/DIN DA BARRA
*
Art. PTFE 2922X604 2922X605 2922X606 2922X607 2922X608 2922X609 2922X610 2922X611 2922X612 2922X613 2922X614 2922X615
Art. PTFE+CBR 2922D604 2922D605 2922D606 2922D607 2922D608 2922D609 2922D610 2922D611 2922D612 2922D613 2922D614 2922D615
DN 15 20 25 32 40 50 65 80 100 * 125 * 150 * 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 16/40 B 10/16 B 10/16 B 10/16 B 16 B

284,82 318,53 447,85 625,40 756,48 931,74 1.405,56 1.715,08 2.286,42 4.339,64 7.749,13 13.599,80
Art. 2926X610 2922X611 2926X612 2926X613 2926X614 2926X615
PN 25/40 B 16/40 B 25/40 B 25/40 B 25/40 B 40 B

art. 2922 AISI 316 F4 - F5* DA BARRA 1.546,00 1.715,08 2.630,00 4.773,00 8.525,00 14.960,00

*
F4 ( F5) - AISI 316 - FULL BORE - UNI/DIN DA FUSIONE
Art. PTFE 2922X606F 2922X607F 2922X608F 2922X609F 2922X610F 2922X611F 2922X612F 2922X613F 2922X614F 2922X615F
Art. PTFE+CBR 2922D606F 2922D607F 2922D608F 2922D609F 2922D610F 2922D611F 2922D612F 2922D613F 2922D614F 2922D615F
DN 25 32 40 50 65 80 100 * 125 * 150 * 200
PN 16/40 F 16/40 16/40 16/40 10/16 F 16/40 F 10/16 F 10/16 10/16 16 F
F
F
F
F
F
art. 2922...F AISI 316 F4 - F5* DA FUSIONE 342,80 A RICH. 528,68 636,64 1.028,41 1.273,27 1.616,08 3.317,85 4.676,83 A RICH.

F1 - AISI 316 - FULL BORE - UNI/DIN DA BARRA PTFE
Art. 2924X604 2924X6052924X606 2924X607 2924X608 2924X609 2924X610 2924X611 2924X612 2924X613 2924X614 2924X615
DN 15 20 25 32 40 50 65 80 100 125 150 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16 B 16/40 B 16 B 16 B 16 B 16 B
art. 2924 AISI 316 F1 DA BARRA 403,22 467,25 692,18 912,66 1.220,06 1.573,04 2.435,88 3.018,35 4.346,75 7.353,22 12.407,72 21.652,22

AISI 304

*
F4 ( F5) - AISI 304 - FULL BORE - UNI/DIN DA BARRA
Art. PTFE 2983X604 2983X6052983X606 2983X607 2983X608 2983X609 2983X610 2983X611 2983X612 2983X613 2983X614 2983X615
Art. PTFE+CBR 2983D604 2983D6052983D6062983D607 2983D608 2983D609 2983D610 2983D611 2983D612 2983D613 2983D614 2983D615
DN 15 20 25 32 40 50 65 80 100 * 125 * 150 * 200
PN 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 16/40 B 10/16 B 16/40 B 10/16 B 10/16 B 10/16 B 16 B
255,14 286,20 400,68 540,07 645,01 712,85 1.123,60 1.382,24 1.958,88 3.721,13 6.482,96 11.259,32
2985X610 2983X611 2985X612 2985X613 2985X614 2985X615
PN 25/40 B 16/40 B 25/40 B 25/40 B 25/40 B 40 B
art. 2983 AISI 304 F4 - F5* DA BARRA 1.236,00 1.382,00 2.260,00 A RICH. 7.460,00 12.950,00

La lettera B nella colonna PN indica la valvola da barra
La lettera F nella colonna PN indica la valvola da fusione. Per esecuzioni speciali vedere pag. 238

228
