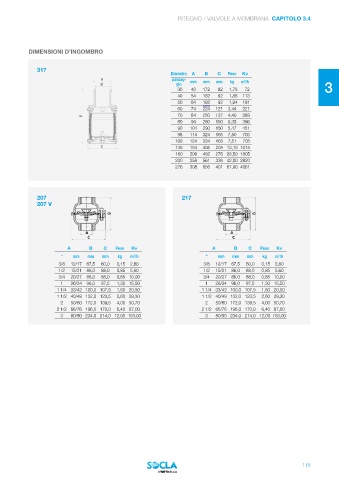

RITEGNO / VALVOLE A MEMBRANA CAPITOLO 3.4

2
DIMENSIONI D’INGOMBRO

317
Diametro A B C Peso Kv
A passag- mm mm mm kg m /h
3
Ø gio 3
30 43 172 92 1,78 72
40 54 182 92 1,88 113
50 64 192 92 1,94 191
60 74 224 121 3,44 221
70 84 250 137 4,40 289
B
80 94 280 150 5,33 366 4
90 104 290 150 5,47 451
98 114 324 165 7,50 705
108 124 334 165 7,51 705
C 138 154 405 205 13,18 1015
180 206 482 276 28,50 1805
230 258 561 336 42,00 2820 5
276 308 656 401 67,90 4061

207 217 6
207 V
B B

A A 7
C C

A B C Peso Kv A B C Peso Kv
3
" mm mm mm kg m /h " mm mm mm kg m /h
3
3/8 12/17 67,5 60,0 0,15 2,80 3/8 12/17 67,5 60,0 0,15 2,80
1/2 15/21 86,0 88,0 0,85 5,60 1/2 15/21 86,0 88,0 0,85 5,60 8
3/4 20/27 86,0 88,0 0,85 10,00 3/4 20/27 86,0 88,0 0,85 10,00
1 26/34 96,0 97,5 1,30 15,50 1 26/34 96,0 97,5 1,30 15,50
1 1/4 33/42 100,0 107,5 1,60 20,50 1 1/4 33/42 100,0 107,5 1,60 20,50
1 1/2 40/49 132,0 123,5 2,60 29,30 1 1/2 40/49 132,0 123,5 2,60 29,30
2 50/60 172,0 139,5 4,00 50,70 2 50/60 172,0 139,5 4,00 50,70
2 1/2 66/76 196,0 170,0 6,40 87,00 2 1/2 66/76 196,0 170,0 6,40 87,00 9
3 80/90 234,0 214,0 12,00 153,00 3 80/90 234,0 214,0 12,00 153,00
