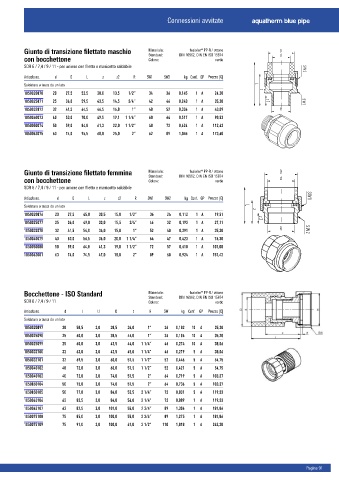

Page 93 - AQUATHERM - LISTINO REV 05-2024 - FIDRA

Connessioni avvitate aquatherm blue pipe

Giunto di transizione filettato maschio Materiale: fusiolen® PP-R / ottone D
con bocchettone Standard: DIN 16962, DIN EN ISO 15874 d
verde
Colore:
SDR 6 / 7,4 / 9 / 11 - per unione con filetto e manicotto saldabile SW2
Articolo no. d D L z z2 R SW1 SW2 kg Conf. GP Prezzo [€]
Saldatura a tasca da un lato L
1050020070 20 27,5 52,5 38,0 13,5 1/2“ 34 36 0,145 1 A 24,20 z
1050025071 25 36,0 59,5 43,5 14,5 3/4“ 42 46 0,243 1 A 35,20 z 2 SW1
1050032072 32 41,5 64,5 46,5 16,8 1“ 48 52 0,336 1 A 43,09 R
1050040073 40 53,0 70,0 49,5 19,1 1 1/4“ 60 64 0,517 1 A 90,53
1050050074 50 59,0 84,8 61,3 22,0 1 1/2“ 48 72 0,624 1 A 112,62
1050063075 63 74,0 95,5 68,0 25,0 2“ 62 89 1,045 1 A 173,60

Giunto di transizione filettato femmina Materiale: fusiolen® PP-R / ottone D
con bocchettone Standard: DIN 16962, DIN EN ISO 15874 d
verde
Colore:
SDR 6 / 7,4 / 9 / 11 - per unione con filetto e manicotto saldabile
Articolo no. d D L z z2 R SW1 SW2 kg Conf. GP Prezzo [€] SW1
Saldatura a tasca da un lato L z
1050020076 20 27,5 45,0 30,5 15,0 1/2“ 36 24 0,112 1 A 19,51 z 2
1050025077 25 36,0 49,0 33,0 15,5 3/4“ 46 32 0,193 1 A 27,11
R
1050032078 32 41,5 54,0 36,0 15,0 1“ 52 40 0,291 1 A 35,20 SW2
1050040079 40 53,0 56,5 36,0 20,0 1 1/4“ 64 47 0,423 1 A 76,30
1050050080 50 59,0 64,8 41,3 19,0 1 1/2“ 72 57 0,610 1 A 101,08
1050063081 63 74,0 74,5 47,0 18,0 2“ 89 68 0,924 1 A 151,42

Bocchettone - ISO Standard Materiale: fusiolen® PP-R / ottone
SDR 6 / 7,4 / 9 / 11 Standard: DIN 16962, DIN EN ISO 15874
Colore:
verde
Articolo no. d l l1 D z R SW kg Conf. GP Prezzo [€]
Saldatura a tasca da un lato
1050020097 20 58,5 3,0 38,5 34,0 1“ 36 0,182 10 A 35,20
1050025098 25 60,0 3,0 38,5 44,0 1“ 36 0,186 10 A 35,20
1050025099 25 60,0 3,0 43,5 44,0 1 1/4“ 46 0,274 10 A 38,06
1050032100 32 63,0 3,0 43,5 45,0 1 1/4“ 46 0,279 5 A 38,06
1050032101 32 69,5 3,0 60,0 51,5 1 1/2“ 52 0,446 5 A 54,75
1050040102 40 72,0 3,0 60,0 51,5 1 1/2“ 52 0,421 5 A 54,75
1050040103 40 72,0 3,0 74,0 51,5 2“ 64 0,719 5 A 103,37
1050050104 50 75,0 3,0 74,0 51,5 2“ 64 0,736 5 A 103,37
1050050105 50 77,0 3,0 84,0 53,5 2 1/4“ 72 0,831 5 A 119,33
1050063106 63 83,5 3,0 84,0 56,0 2 1/4“ 72 0,889 1 A 119,33
1050063107 63 82,5 3,0 101,0 55,0 2 3/4“ 89 1,306 1 A 181,86
1050075108 75 85,0 3,0 100,0 55,0 2 3/4“ 89 1,275 1 A 181,86
1050075109 75 91,0 3,0 100,0 61,0 3 1/2“ 110 1,818 1 A 262,20

Pagina 91
