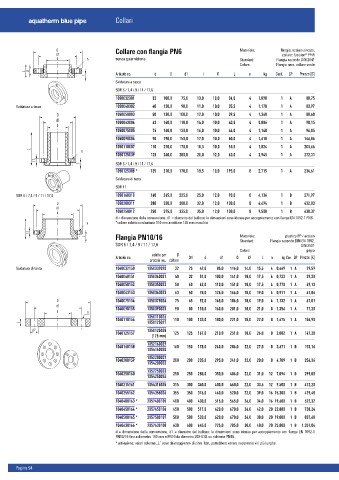

aquatherm blue pipe Collari

D Collare con flangia PN6 Materiale: flangia: acciaio zincato,
d1 collare: fusiolen® PP-R
d n senza guarnizione Standard: Flangia secondo DIN 2641
Colore: Flangia nera, collare verde
L l1
Articolo no. d D d1 l l1 L n kg Conf. GP Prezzo [€]
l
Saldatura a tasca
SDR 6 / 7,4 / 9 / 11 / 17,6
1050032001 32 100,0 75,0 10,0 10,0 34,0 4 1,090 1 A 80,75
Saldatura a tasca 1050040002 40 120,0 90,0 11,0 10,0 35,5 4 1,170 1 A 83,97
D 1050050003 50 130,0 100,0 12,0 10,0 39,5 4 1,360 1 A 88,60
d1 1050063004 63 140,0 110,0 14,0 10,0 43,5 4 0,886 1 A 90,15
d
1050075005 75 160,0 130,0 16,0 10,0 46,0 4 1,148 1 A 96,85
1050090006 90 190,0 150,0 17,0 10,0 50,0 4 1,618 1 A 146,86
1050110007 110 210,0 170,0 18,5 10,0 55,5 4 1,824 1 A 205,66
L
n
1050125009 125 240,0 200,0 20,0 12,0 63,0 4 3,945 1 A 272,31
l1
l SDR 6 / 7,4 / 9 / 11 / 17,6
1050125008 * 125 210,0 170,0 18,5 10,0 195,0 8 2,715 1 A 234,61
Saldatura di testa
SDR 11
SDR 6 / 7,4 / 9 / 11 / 17,6 1050160010 160 265,0 225,0 25,0 12,0 93,0 8 4,136 1 B 271,97
D 1050200011 200 320,0 280,0 32,0 12,0 130,0 8 6,694 1 B 432,83
d1
d 1050250012 250 375,0 335,0 35,0 12,0 130,0 8 9,500 1 B 638,37
d = dimensione della connessione, d1 = diametro del bullone; le dimensioni sono idonee per accoppiamento con flange EN 1092-1 PN6.
n *collare ridotto con battuta 110 mm a saldare 125 mm maschio
L
l1
Flangia PN10/16 Materiale: plastica PP / acciaio
l
SDR 6 / 7,4 / 9 / 11 / 17,6 Standard: Flangia secondo DIN EN 1092,
DIN 2501

Colore: grigio
adatto per Ø
Articolo no. DN d d1 D d2 L n kg Con. GP Prezzo [€]
articolo no.. collare
Saldatura di testa 1040032150 1050032020 32 25 42,0 85,0 116,0 14,0 15,5 4 0,469 1 A 29,59
1040040151 1050040021 40 32 51,0 100,0 141,0 18,0 17,5 4 0,722 1 A 39,20
1040050152 1050050022 50 40 62,0 110,0 151,0 18,0 17,5 4 0,770 1 A 49,13
1040063153 1050063023 63 50 78,0 125,0 166,0 18,0 19,0 4 0,911 1 A 61,86
D 1040075154 1050075024 75 65 92,0 145,0 186,0 18,0 19,0 4 1,132 1 A 67,01
d1 1040090155 1050090025 90 80 110,0 160,0 201,0 18,0 21,0 8 1,356 1 A 77,20
d n
1050110026
1040110156 110 100 133,0 180,0 221,0 18,0 22,0 8 1,475 1 A 106,90
L 1050125027
d2 1050125028
1040125157 125 125 167,0 210,0 251,0 18,0 26,0 8 2,082 1 A 147,28
(125 mm)
1052160029
1040160158 160 150 178,0 240,0 286,0 22,0 27,0 8 3,671 1 B 153,16
1054160030
1052200031
1040200159 200 200 235,0 295,0 341,0 22,0 28,0 8 4,709 1 B 256,36
1054200032
1052250033
1040250160 250 250 288,0 350,0 406,0 22,0 31,0 12 7,094 1 B 299,00
1054250034
1040315161 1054315035 315 300 340,0 400,0 460,0 22,0 33,5 12 9,500 1 B 412,20
1040355162 1054355036 355 350 376,0 460,0 520,0 22,0 39,0 16 15,300 1 B 429,48
1040400163 * 2057400105 400 400 430,0 515,0 565,0 26,0 34,0 16 19,680 1 B 522,32
1040450164 * 2057450106 450 500 517,0 620,0 670,0 26,0 42,0 20 22,880 1 B 738,24
1040500165 * 2057500107 500 500 533,0 620,0 670,0 26,0 38,0 20 19,000 1 B 837,68
1040630166 * 2057630108 630 600 645,0 725,0 785,0 30,0 40,0 20 25,800 1 B 1.351,04
d = dimensione della connessione, d1 = diametro del bullone; le dimensioni sono idonee per accoppiamento con flange EN 1092-1
PN10/16 fino a diametro 160 mm e PN10 da diametro 200-630, su richiesta PN16.
* attenzione: valori colonna „L“ sono da maggiorare di circa 1cm, potrebbero essere necessarie viti più lunghe
